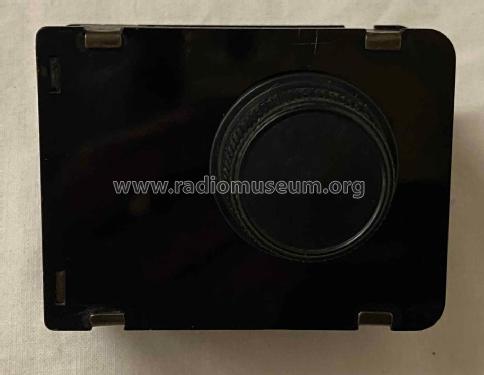

Sator-Sperrkreis WN; Kremenezky, Johann (ID = 189517) mod-past25
Kremenezky, Johann: Sator-Sperrkreis WN [mod-past25] ID = 189517 449x344
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sator-Sperrkreis WN, Kremenezky, Johann (Sator); Wien,(Röhrenhersteller):
Sator Sperrkreis

Country:  Austria
Manufacturer / Brand:  Kremenezky, Johann (Sator); Wien,(Röhrenhersteller)
Year: 1939 ? Category: Radio module post 1925 (not a part, not a key)
Main principle RF-Circuit or wave trap (separate, can also be an antenna with amp.)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage No Power needed
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Sator-Sperrkreis WN - Kremenezky, Johann Sator; Wien
Material Bakelite case
Dimensions (WHD) 78 x 57 x 30 mm / 3.1 x 2.2 x 1.2 inch
Notes

Sperrkreis mit 2 Buchsen: A und E. Gehäusebeschriftung: WD 159 RI.

Lieferbar für DKE 1938, VE301dyn (W und GW), VE301Wn.

Net weight (2.2 lb = 1 kg) 0.1 kg / 0 lb 3.5 oz (0.22 lb)
Price in first year of sale 4.50 RM
Source of data - - Data from my own collection
Mentioned in SATOR Rundfunk-Einzelteile, Katalog 1939

Model page created by Gerhard Heigl. See "Data change" for further contributors.
