Protronic Mini City

Protronic Mini City ; SB ELEKTRONIK, (ID = 1372819) Radio Protronic Mini City ; SB ELEKTRONIK, (ID = 1372820) Radio
Protronic Mini City ; SB ELEKTRONIK, (ID = 1372821) Radio Protronic Mini City ; SB ELEKTRONIK, (ID = 1372822) Radio
Protronic Mini City ; SB ELEKTRONIK, (ID = 1372823) Radio Protronic Mini City ; SB ELEKTRONIK, (ID = 1372825) Radio
Protronic Mini City ; SB ELEKTRONIK, (ID = 1372827) Radio
Use red slider bar for more.
Protronic Mini City ; SB ELEKTRONIK, (ID = 1372819) Radio
SB ELEKTRONIK,: Protronic Mini City [Radio] ID = 1372819 802x1000
Select picture or schematic to display from thumbnails on the right and click for download.
For model Protronic Mini City, SB ELEKTRONIK, Protronic (Marke / brand); Mannheim

Country:  Germany
Manufacturer / Brand:  SB ELEKTRONIK, Protronic (Marke / brand); Mannheim
Year: 1968 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / AA 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.5 cm = 1.8 inch
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: Protronic Mini City - SB ELEKTRONIK, Protronic Marke
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 63 x 80 x 33 mm / 2.5 x 3.1 x 1.3 inch
Notes

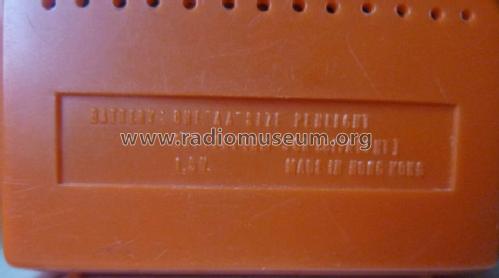

Protronic Mini City wurde in Hong Kong für die SB Elektronik Mannheim hergestellt.

Model page created by Joachim Gittel. See "Data change" for further contributors.
