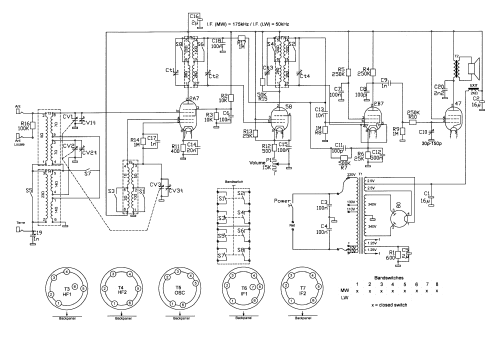

Standard SA; Scarabee - Edouard (ID = 2179686) Radio

Standard SA; Scarabee - Edouard (ID = 2179687) Radio
Standard SA; Scarabee - Edouard (ID = 309453) Radio Standard SA; Scarabee - Edouard (ID = 309455) Radio
Standard SA; Scarabee - Edouard (ID = 309454) Radio Standard SA; Scarabee - Edouard (ID = 309456) Radio

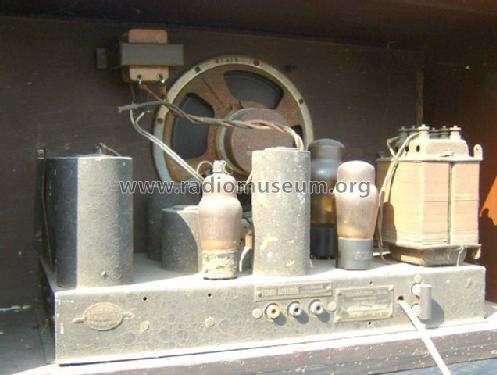

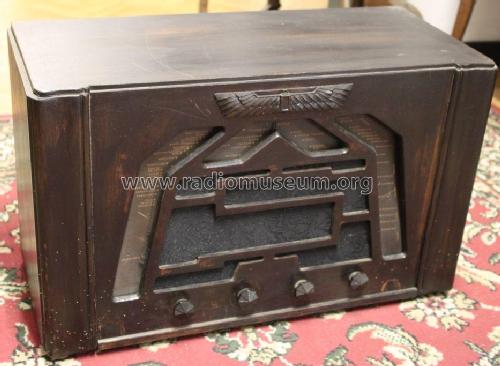

Standard SA; Scarabee - Edouard (ID = 309457) Radio Standard SA; Scarabee - Edouard (ID = 1787293) Radio
Use red slider bar for more.
Standard SA; Scarabee - Edouard (ID = 309453) Radio
Scarabee - Edouard: Standard SA [Radio] ID = 309453 616x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Standard SA, Scarabee - Edouard Binard, Bruxelles:
Picture taken in the Olens Radiomuseum, Belgium

Country:  Belgium
Manufacturer / Brand:  Scarabee - Edouard Binard, Bruxelles
Year: 1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 2A7 58 2B7 47 80
Main principle Superheterodyne (common); ZF/IF 175 or 50 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 220; 130; 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Standard SA - Scarabee - Edouard Binard,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 555 x 350 x 250 mm / 21.9 x 13.8 x 9.8 inch
Notes

Something very exceptional: this radio has a different intermediate frequency for medium and long wave band, 175 kHz versus 50 kHz. The bandswitch does not only the change in the H.F. stage but in the I.F. stages as well.



Price in first year of sale 2'480.00 BEF
Source of data Manuel de la Radio 1940, van Cortenberghe

Model page created by Georges Van Campenhout. See "Data change" for further contributors.
