• Country
• Germany

• Manufacturer / Brand
• Schilling, Walter; Nehren / Tübingen

• Year
• 1971 ??

• Category
• Radio module post 1925 (not a part, not a key)

• Radiomuseum.org ID
• 249940

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• Powered by external power supply or a main unit. / DC 12 & 25 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Various materials

• from Radiomuseum.org

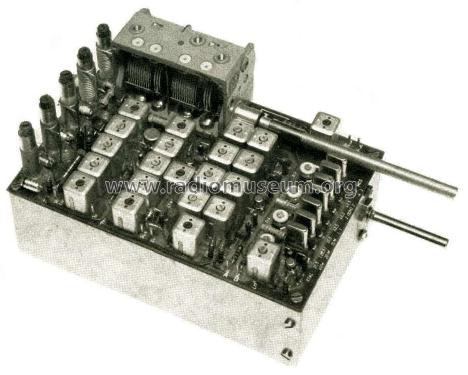

• Model: Mischer HS 1000 Mx - Schilling, Walter; Nehren /

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 100 x 95 x 150 mm / 3.9 x 3.7 x 5.9 inch

• Notes

• Die Baugruppe HS-1000 Mx setzt das ESB-Signal auf 9 MHz zusammen mit dem VFO-Signal 5,0-5,5 MHz um auf die Frequenzen:

  3,5 - 4,0 MHz
  7,0 - 7,2 MHz
  14,0 - 14,35 MHz
  21,0 - 21,45 MHz
  28,0 - 28,5 MHz
  28,5 - 29,0 MHz
  29,0 - 29,5 MHz
  29,5 - 30,0 MHz

  Er liefert die notwendige Treiberleistung, um eine Röhrenendstufe mit 150 - 180 W direkt anzusteuern.
