Sperrkreis Sirius

Schneider-Opel AG, Radiowerke; Frankfurt a.M., später Berlin

Data
Forum
Pictures
Collections

  • Year
  • 1928 ?
  • Category
  • Radio module post 1925 (not a part, not a key)
  • Radiomuseum.org ID
  • 358317
    • Brand: Mars

 Technical Specifications

  • Main principle
  • RF-Circuit or wave trap (separate, can also be an antenna with amp.)
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Sperrkreis Sirius - Schneider-Opel AG, Radiowerke;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 160 x 65 x 120 mm / 6.3 x 2.6 x 4.7 inch
  • Notes

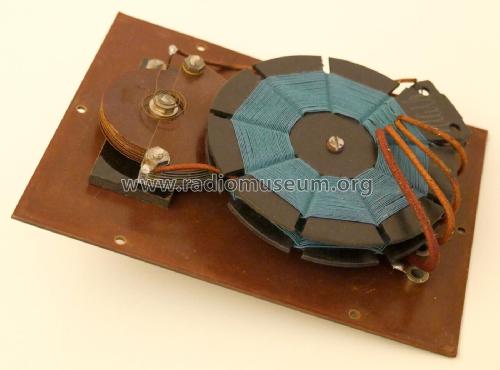

  • Schneider-Opel Sperrkreis Sirius,
    "Zur Ausschaltung des Ortssenders. Äusserst verlustfrei. Hoher Wirkungsgrad"

    Spule mit 5 Anzapfungen, Abstimmung mit Drehkondensator.

  • Price in first year of sale
  • 8.50 RM
  • Author
  • Model page created by Bernhard Nagel. See "Data change" for further contributors.
