• Country
• Germany

• Manufacturer / Brand
• Schoeps, Dr., Schalltechnik; Karlsruhe-Durlach

• Year
• 1955 ??

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 143270

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• from Radiomuseum.org

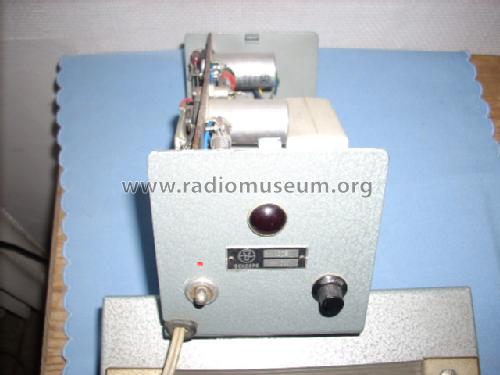

• Model: Netzgerät N20B - Schoeps, Dr., Schalltechnik;

• Dimensions (WHD)
• 100 x 100 x 210 mm / 3.9 x 3.9 x 8.3 inch

• Notes
• Netzgerät für Kondensatormikrofone mit eingebautem Röhrenverstärker . Ausgangsspannung 120 und 8 Volt Gleichspannung .

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Norbert Haselbach. See "Data change" for further contributors.
