Dekadischer Service-Frequenzmesser FD100

Dekadischer Service-Frequenzmesser FD100; Schomandl KG; (ID = 1429635) Equipment

Dekadischer Service-Frequenzmesser FD100; Schomandl KG; (ID = 1429636) Equipment

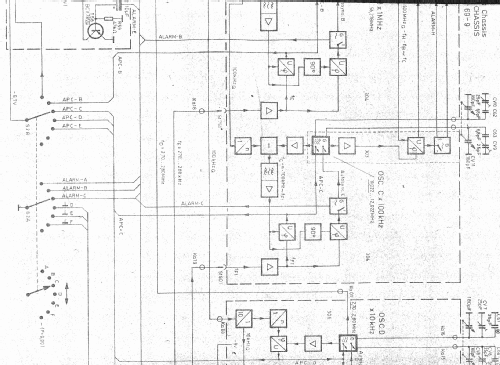

Dekadischer Service-Frequenzmesser FD100; Schomandl KG; (ID = 1429638) Equipment

Dekadischer Service-Frequenzmesser FD100; Schomandl KG; (ID = 1429639) Equipment

Dekadischer Service-Frequenzmesser FD100; Schomandl KG; (ID = 1429642) Equipment

Dekadischer Service-Frequenzmesser FD100; Schomandl KG; (ID = 1429643) Equipment

Dekadischer Service-Frequenzmesser FD100; Schomandl KG; (ID = 1429644) Equipment

Dekadischer Service-Frequenzmesser FD100; Schomandl KG; (ID = 1429645) Equipment

Dekadischer Service-Frequenzmesser FD100; Schomandl KG; (ID = 1429647) Equipment

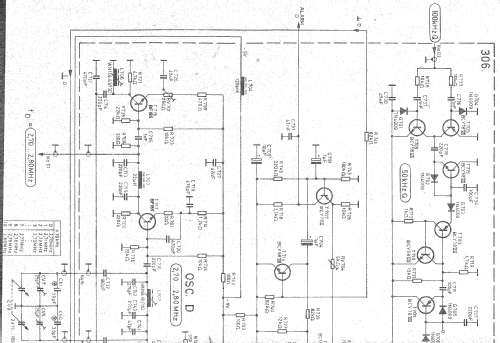

Dekadischer Service-Frequenzmesser FD100; Schomandl KG; (ID = 1429944) Equipment
Dekadischer Service-Frequenzmesser FD100; Schomandl KG; (ID = 1446127) Equipment Dekadischer Service-Frequenzmesser FD100; Schomandl KG; (ID = 1426049) Equipment
Dekadischer Service-Frequenzmesser FD100; Schomandl KG; (ID = 1426060) Equipment Dekadischer Service-Frequenzmesser FD100; Schomandl KG; (ID = 1426064) Equipment
Use red slider bar for more.
Dekadischer Service-Frequenzmesser FD100; Schomandl KG; (ID = 1446127) Equipment
Schomandl KG;: Dekadischer Service-Frequenzmesser FD100 [Equipment] ID = 1446127 840x507

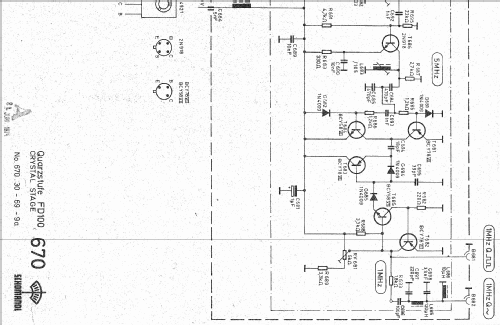

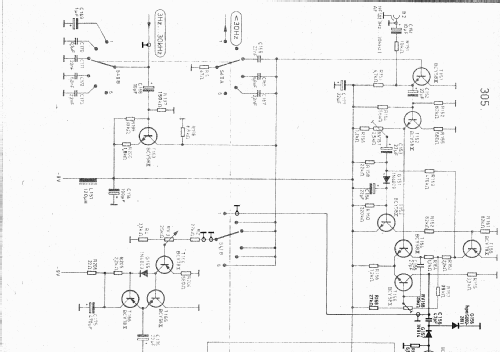

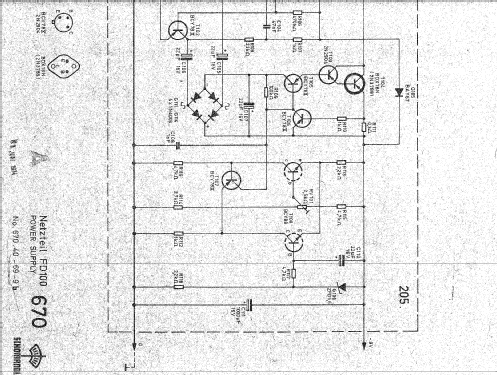

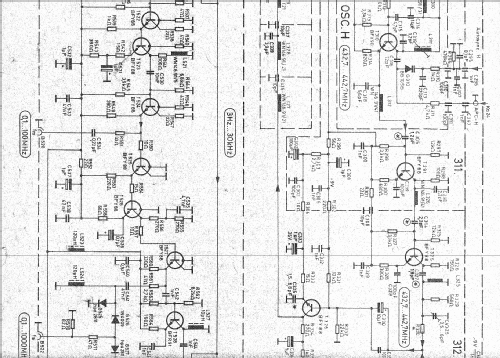

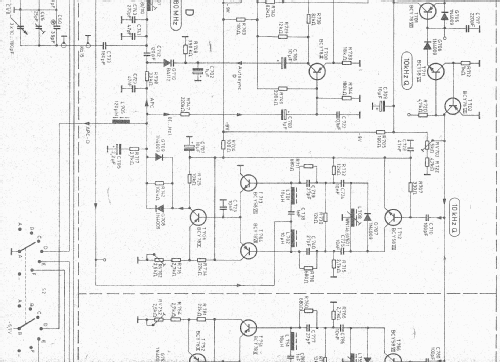

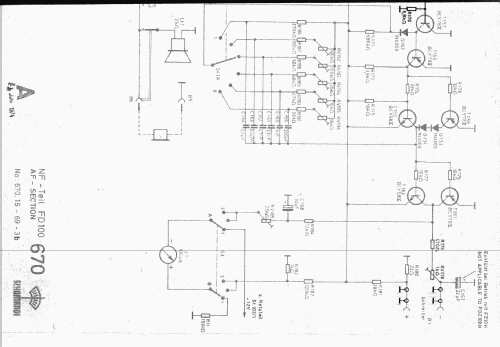

Select picture or schematic to display from thumbnails on the right and click for download.
For model Dekadischer Service-Frequenzmesser FD100, Schomandl KG; München

Country:  Germany
Manufacturer / Brand:  Schomandl KG; München
Brand

Meto
Year: 1971 Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Line / Batteries (any type) / 90-260 AC/ 10-15 DC Volt
Loudspeaker Magnetic loudspeaker (reed) generic.
Power out
from Radiomuseum.org Model: Dekadischer Service-Frequenzmesser FD100 - Schomandl KG; München
Material Metal case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 444 x 183 x 312 mm / 17.5 x 7.2 x 12.3 inch
Notes

Dekadischer Frequenzmesser für frequenzmäßige Wartung von Sprechfunkanlagen, Zur Eichung und Nachstellen von Quarzoszillatoren und zur Frequenzeinstellung von Selektivrufeinrichtungen. Speziell für den Außendienst.  Frequenzmessung 0,1-1000MHz. Frequenzerzeugung 3Hz-30khz mit Differenzausgang.   0,1-100MHz mit Grundfrequenzausgang,  100MHz-1000MHz mit Oberwellenausgang. Überlagerungsfrequenzmesser.

Net weight (2.2 lb = 1 kg) 10.5 kg / 23 lb 2 oz (23.128 lb)
Mentioned in Sonderdruck Neues v.Rohde&Schwarz 1971

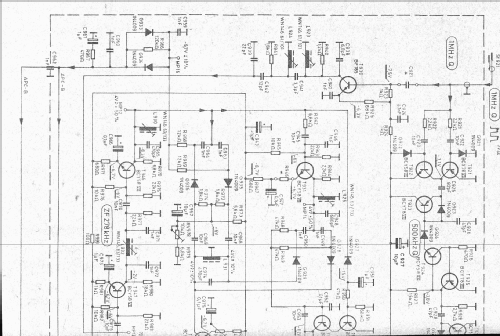

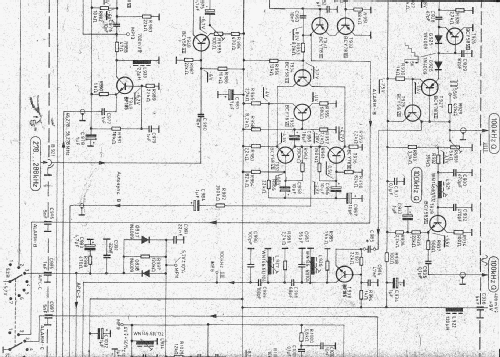

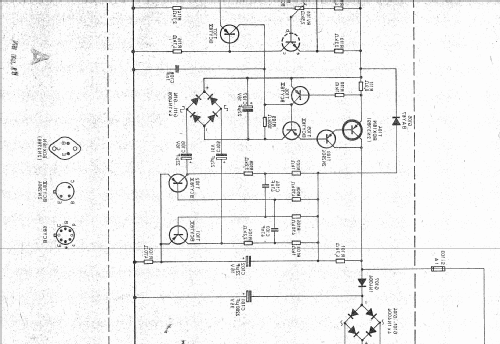

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Rudolf Müller. See "Data change" for further contributors.
