- Country
- Germany
- Manufacturer / Brand
- Schuchhardt, Berliner Fernsprech- und Telephonwerk AG; Berlin
- Year
- 1924
- Category
- Detector-Radio (Crystal or diode, without tubes/transistors)
- Radiomuseum.org ID
- 17000
-
- alternative name: Allradio-Telegraphon-Ges. || Ges. für Funk- und Fernm.App.mbH (Allradio)
Click on the schematic thumbnail to request the schematic as a free document.
- Main principle
- Crystal or Solid State Detector; Crystal-detection 1 circuit (no tubes)
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org

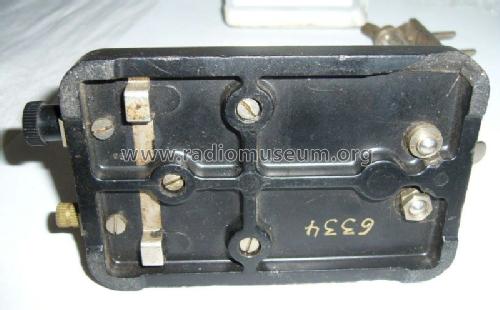

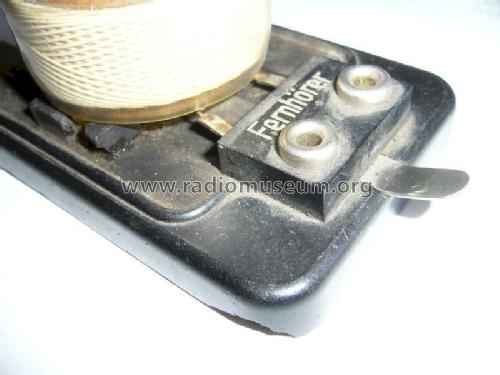

- Model: Allrator - Schuchhardt, Berliner
- Dimensions (WHD)
- 70 x 50 x 105 mm / 2.8 x 2 x 4.1 inch
- Notes
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Mentioned in
- Die Sendung (Nr. 17, 1924)
