Lautsprecher-Chassis KSP oval 5 Ohm
Schulz Elektroakustik/Mechanik, K. / W. (KWS); Berlin (Ostd.)
- Country
- Germany
- Manufacturer / Brand
- Schulz Elektroakustik/Mechanik, K. / W. (KWS); Berlin (Ostd.)
- Year
- 1960 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 274381
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Metal case
- from Radiomuseum.org
- Model: Lautsprecher-Chassis KSP oval [5 Ohm] - Schulz Elektroakustik/Mechanik
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 153 x 95 x 56 mm / 6 x 3.7 x 2.2 inch
- Notes
-

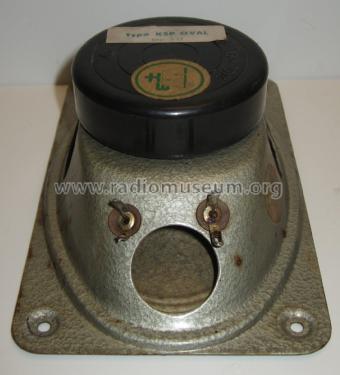

Breitbandiges Ovallautsprecherchassis;
Impedanz: 5 Ω; Korb: offen, hammerschlaglackiertes Stahlblech in rechteckiger Grundform, 4 Befestigungslöcher (Lochabstände: 133 mm x 76 mm).
- Net weight (2.2 lb = 1 kg)
- 0.405 kg / 0 lb 14.3 oz (0.892 lb)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
