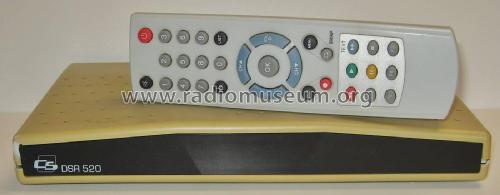

Digitaler Satelliten Receiver DSR 520 011

Schwaiger, Christian; Langenzenn

Data
Forum
Pictures
Collections

  • Year
  • 2007 ??
  • Category
  • Digital terrestrial, Internet and SAT receiver (also analogue)
  • Radiomuseum.org ID
  • 346229

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • SAT-IF
  • Details
  • Remote Control (with wire or wireless)
  • Power type and voltage
  • Powered by external power supply or a main unit. / DC: 12 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Digitaler Satelliten Receiver DSR 520 011 - Schwaiger, Christian;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 228 x 34 x 135 mm / 9 x 1.3 x 5.3 inch
  • Notes

  • DVB-S-Receiver.
    Anschlüsse: IF INPUT DIGITAL 13/18V 300 mA (F-Type), TV-SCART, VCR-SCART, POWER 12V= 1,5 A.
    Fernbedienung: RC0896-V4.
    Leistungsaufnahme: max. 15 Watt.

    Made in Germany.

    Halbleiterliste nicht vollständig.

  • Net weight (2.2 lb = 1 kg)
  • 0.342 kg / 0 lb 12.1 oz (0.753 lb)
  • Author
  • Model page created by Michael Mischke. See "Data change" for further contributors.
