Dynaural Equalizer - Preamplifier 121C

Dynaural Equalizer - Preamplifier 121C; Scott; H.H.; Maynard (ID = 2481741) Ampl/Mixer

Dynaural Equalizer - Preamplifier 121C; Scott; H.H.; Maynard (ID = 2481742) Ampl/Mixer

Dynaural Equalizer - Preamplifier 121C; Scott; H.H.; Maynard (ID = 2481743) Ampl/Mixer

Dynaural Equalizer - Preamplifier 121C; Scott; H.H.; Maynard (ID = 2481744) Ampl/Mixer

Dynaural Equalizer - Preamplifier 121C; Scott; H.H.; Maynard (ID = 2481745) Ampl/Mixer

Dynaural Equalizer - Preamplifier 121C; Scott; H.H.; Maynard (ID = 2481746) Ampl/Mixer

Dynaural Equalizer - Preamplifier 121C; Scott; H.H.; Maynard (ID = 2481747) Ampl/Mixer
Dynaural Equalizer - Preamplifier 121C; Scott; H.H.; Maynard (ID = 2399366) Ampl/Mixer Dynaural Equalizer - Preamplifier 121C; Scott; H.H.; Maynard (ID = 2399367) Ampl/Mixer
Dynaural Equalizer - Preamplifier 121C; Scott; H.H.; Maynard (ID = 2103955) Ampl/Mixer Dynaural Equalizer - Preamplifier 121C; Scott; H.H.; Maynard (ID = 2103958) Ampl/Mixer
Dynaural Equalizer - Preamplifier 121C; Scott; H.H.; Maynard (ID = 2103960) Ampl/Mixer Dynaural Equalizer - Preamplifier 121C; Scott; H.H.; Maynard (ID = 2638787) Ampl/Mixer
Dynaural Equalizer - Preamplifier 121C; Scott; H.H.; Maynard (ID = 2638789) Ampl/Mixer Dynaural Equalizer - Preamplifier 121C; Scott; H.H.; Maynard (ID = 2638790) Ampl/Mixer
Dynaural Equalizer - Preamplifier 121C; Scott; H.H.; Maynard (ID = 2638792) Ampl/Mixer Dynaural Equalizer - Preamplifier 121C; Scott; H.H.; Maynard (ID = 2638794) Ampl/Mixer
Use red slider bar for more.
Dynaural Equalizer - Preamplifier 121C; Scott; H.H.; Maynard (ID = 2399366) Ampl/Mixer
Scott; H.H.; Maynard: Dynaural Equalizer - Preamplifier 121C [Ampl/Mixer] ID = 2399366 1200x639
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dynaural Equalizer - Preamplifier 121C, Scott; H.H.; Maynard, Massachusetts:
Q: Scott, Produkt-Katalog

Country:  United States of America (USA)
Manufacturer / Brand:  Scott; H.H.; Maynard, Massachusetts
Year: 1956–1959 Category: Audio Amplifier or -mixer
Valves / Tubes 7: 12AX7 12AX7 12AU7 12AU7 12AU7 6AV6 6X4
Semiconductors (the count is only for transistors) Selenium-Rectifier
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 60 Hz, 117V = 110 -120 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Dynaural Equalizer - Preamplifier 121C - Scott; H.H.; Maynard,
Material Wooden case
Shape Book-shelf unit.
Notes

H.H.Scott model 121-C is a Mono Preamp with several phono equalization settings and with DNS. (Dynaural Noise Suppressor).



Price in first year of sale 159.00 $

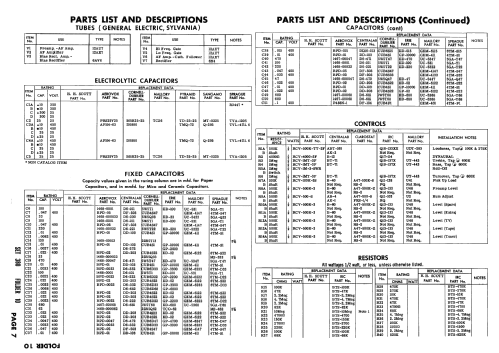

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Set 380 Folder 10 dated 12-57)

Model page created by Franz Scharner. See "Data change" for further contributors.



All listed radios etc. from Scott; H.H.; Maynard, Massachusetts
Here you find 151 models, 133 with images and 58 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
