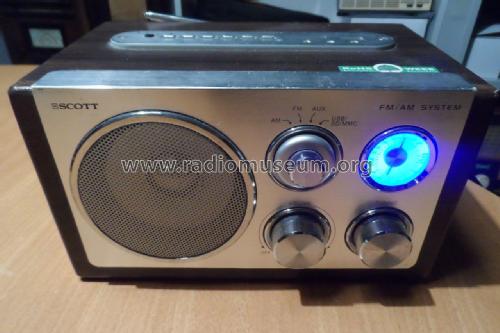

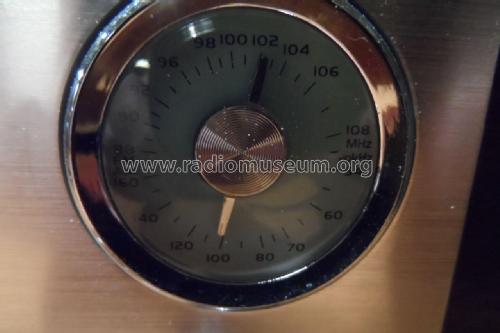

AM/FM USB/SD/MMC Wooden Radio R19WS

AM/FM USB/SD/MMC Wooden Radio R19WS; Scott; H.H.; Maynard (ID = 1939528) Radio AM/FM USB/SD/MMC Wooden Radio R19WS; Scott; H.H.; Maynard (ID = 1939529) Radio
AM/FM USB/SD/MMC Wooden Radio R19WS; Scott; H.H.; Maynard (ID = 1939530) Radio AM/FM USB/SD/MMC Wooden Radio R19WS; Scott; H.H.; Maynard (ID = 1939531) Radio
AM/FM USB/SD/MMC Wooden Radio R19WS; Scott; H.H.; Maynard (ID = 1939532) Radio AM/FM USB/SD/MMC Wooden Radio R19WS; Scott; H.H.; Maynard (ID = 1939534) Radio
Use red slider bar for more.
AM/FM USB/SD/MMC Wooden Radio R19WS; Scott; H.H.; Maynard (ID = 1939528) Radio
Scott; H.H.; Maynard: AM/FM USB/SD/MMC Wooden Radio R19WS [Radio] ID = 1939528 1280x853
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM USB/SD/MMC Wooden Radio R19WS, Scott; H.H.; Maynard, Massachusetts

Country:  United States of America (USA)
Manufacturer / Brand:  Scott; H.H.; Maynard, Massachusetts
Year: 1995 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details HD or solid state memory
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out
from Radiomuseum.org Model: AM/FM USB/SD/MMC Wooden Radio R19WS - Scott; H.H.; Maynard,
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 225 x 132 x 145 mm / 8.9 x 5.2 x 5.7 inch
Notes

FM/AM System , USB /SD/MMC Anschlüsse mit speziellem Bedienteil.

Made in China.

Net weight (2.2 lb = 1 kg) 1.690 kg / 3 lb 11.6 oz (3.722 lb)

Model page created by Wolfgang Lill. See "Data change" for further contributors.
