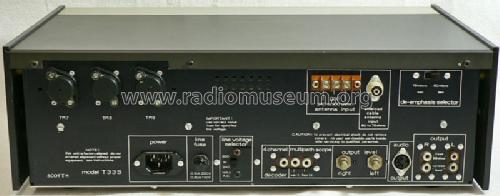

Digital Tuner T 33 S
Scott; H.H.; Maynard, Massachusetts
- Country
- United States of America (USA)
- Manufacturer / Brand
- Scott; H.H.; Maynard, Massachusetts
- Year
- 1975–1977
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 230995
aus ebay, #150991642032, Verkäufer bruhako
aus ebay, #150991642032, Verkäufer bruhako
aus ebay, #150991642032, Verkäufer bruhako
aus ebay, #150991642032, Verkäufer bruhako
aus Ricardo, #1098890168, Verkäufer Peruth
aus Ricardo, #1098890168, Verkäufer Peruth
aus Ricardo, #1098890168, Verkäufer Peruth
aus Ricardo, #1098890168, Verkäufer Peruth
aus Ricardo, #1098890168, Verkäufer Peruth
aus Ricardo, #1098890168, Verkäufer Peruth
- Number of Tubes
- 4
- Valves / Tubes
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- PLL, Phase-locked loop; ZF/IF 10700 kHz
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: Digital Tuner T 33 S - Scott; H.H.; Maynard,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 445 x 150 x 315 mm / 17.5 x 5.9 x 12.4 inch
- Notes
-
Early digital frequency synthesizer tuner, with memory cards for station preset.
Digital logic circuit in ECL and TTL technology.
See also the predecessor Stereomaster 433.
Another early PLL tuner is the Revox A720.
- Net weight (2.2 lb = 1 kg)
- 8.3 kg / 18 lb 4.5 oz (18.282 lb)
- Price in first year of sale
- 2,198.00 DM
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
