• Country
• United States of America (USA)

• Manufacturer / Brand
• Scott; H.H.; Maynard, Massachusetts

• Year
• 1951 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 286981

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 6SQ7 6SG7 6SG7

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

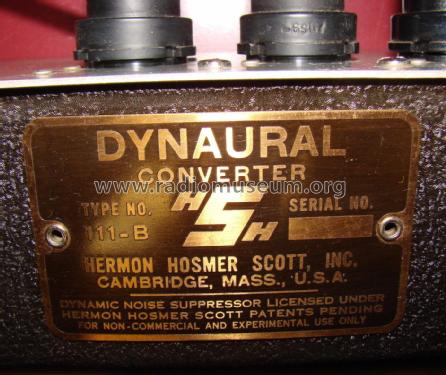

• Model: Dynaural Converter 111-B - Scott; H.H.; Maynard,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 7 x 4.75 x 4 inch / 178 x 121 x 102 mm

• Notes

• Scott model 111-B is a dynaural converter. Dynamic Noise Suppressor.

• Mentioned in
• -- Schematic

• Literature/Schematics (1)

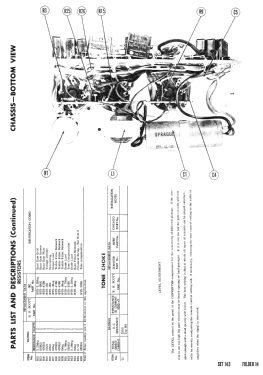

• Photofact Folder, Howard W. SAMS (set 143, folder 14, 9-51)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
