• Country
• United States of America (USA)

• Manufacturer / Brand
• Scott; H.H.; Maynard, Massachusetts

• Year
• 1957

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 281616

• Number of Tubes
• 10

• Valves / Tubes
• 12AX7 12AX7 12AU7 12AU7 6AL5 12AX7 12AX7 EL34 EL34 5U4GA

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 30 W (60 W max.)

• Material
• Metal case

• from Radiomuseum.org

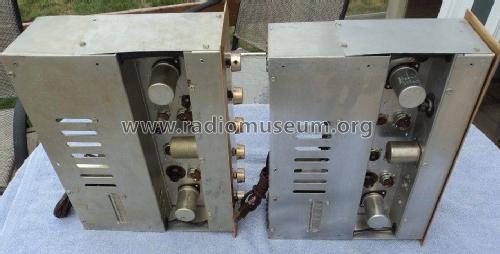

• Model: Dynaural Laboratory Amplifier 210-E - Scott; H.H.; Maynard,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 15 x 4.5 x 11.5 inch / 381 x 114 x 292 mm

• Notes

• Integrated amplifier, mono, with several phono equalization settings and with Dynamic Noise Suppressor.

• Net weight (2.2 lb = 1 kg)
• 20.5 lb (20 lb 8 oz) / 9.307 kg

• Mentioned in
• Radio Shack Catalog ((1957))

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.

• Other Models

• Here you find 181 models, 163 with images and 73 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Scott; H.H.; Maynard, Massachusetts
