• Country
• United States of America (USA)

• Manufacturer / Brand
• Scott; H.H.; Maynard, Massachusetts

• Year
• 1962/1963

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 115322

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6BS8 or 6BQ7A 6U8 6AU6 6AU6 6AU6 6BL8 12AU7 12AU7 12AT7

• Main principle
• Superhet with RF-stage

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

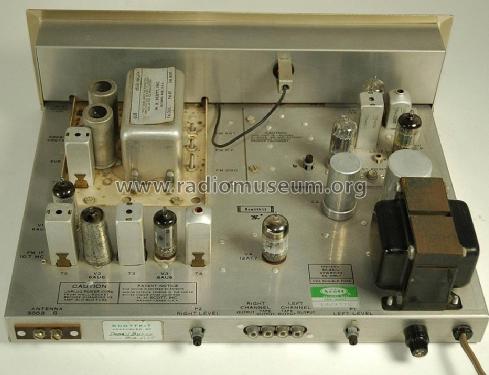

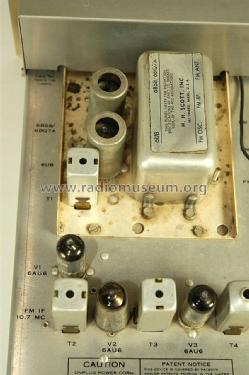

• Model: Scott Kit Stereomaster LT-110 - Scott; H.H.; Maynard,

• Shape
• Book-shelf unit.

• Notes

• Wideband FM Multiplex Stereo tuner; kit version of model 350B.

• Price in first year of sale
• 159.00 $

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
