Stereo Amplifier A416

Stereo Amplifier A416; Scott; H.H.; Maynard (ID = 2458574) Ampl/Mixer

Stereo Amplifier A416; Scott; H.H.; Maynard (ID = 2458575) Ampl/Mixer

Stereo Amplifier A416; Scott; H.H.; Maynard (ID = 2458576) Ampl/Mixer

Stereo Amplifier A416; Scott; H.H.; Maynard (ID = 2458577) Ampl/Mixer

Stereo Amplifier A416; Scott; H.H.; Maynard (ID = 2458578) Ampl/Mixer

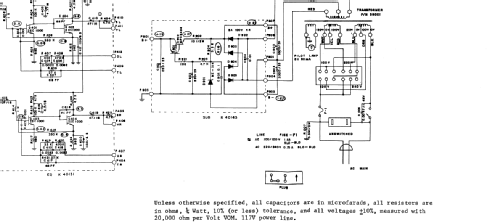

Stereo Amplifier A416; Scott; H.H.; Maynard (ID = 2458579) Ampl/Mixer
Stereo Amplifier A416; Scott; H.H.; Maynard (ID = 2230252) Ampl/Mixer Stereo Amplifier A416; Scott; H.H.; Maynard (ID = 2035740) Ampl/Mixer
Stereo Amplifier A416; Scott; H.H.; Maynard (ID = 2035741) Ampl/Mixer Stereo Amplifier A416; Scott; H.H.; Maynard (ID = 2230251) Ampl/Mixer
Stereo Amplifier A416; Scott; H.H.; Maynard (ID = 2230253) Ampl/Mixer Stereo Amplifier A416; Scott; H.H.; Maynard (ID = 2230254) Ampl/Mixer
Stereo Amplifier A416; Scott; H.H.; Maynard (ID = 2230255) Ampl/Mixer
Use red slider bar for more.
Stereo Amplifier A416; Scott; H.H.; Maynard (ID = 2230252) Ampl/Mixer
Scott; H.H.; Maynard: Stereo Amplifier A416 [Ampl/Mixer] ID = 2230252 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Amplifier A416, Scott; H.H.; Maynard, Massachusetts

Country:  United States of America (USA)
Manufacturer / Brand:  Scott; H.H.; Maynard, Massachusetts
Year: 1976 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 27: 2SC733 2SC372 2SC374 2SC1166 2SC1000 2SC789 2SA495 2SA661 MPS9484 MA150
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 50/60 Hz / 100; 120; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 40 W (max.)
from Radiomuseum.org Model: Stereo Amplifier A416 - Scott; H.H.; Maynard,
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 350 x 120 x 280 mm / 13.8 x 4.7 x 11 inch
Notes

Scott Integrated Stereo Amplifier Model A-416

Power output max.: 20 W per channel - 8 Ω (stereo);

Frequency response: 15 Hz to 35 kHz

Total harmonic distortion: 0.5%;

Signal to noise ratio: 60 dB Phono; 65 dB Mic; 75 dB Aux.

Input sensitivity: Phono 2.5 mV; Mic. 6 mV; Tape recorder and aux: 160 mV.

Transistors listed once per type. 14 diodes and 27 transistors. Please compare with model A416E with the same case but newer technique (and 30 transistors).

A cover must be opened to change the working voltage.

Net weight (2.2 lb = 1 kg) 7.2 kg / 15 lb 13.7 oz (15.859 lb)
Mentioned in -- Original prospect or advert (Original Service Manual 416/426/436)

Model page created by Gianluigi Miazzi. See "Data change" for further contributors.
