Stereomaster 342-C
Scott; H.H.; Maynard, Massachusetts
- Country
- United States of America (USA)
- Manufacturer / Brand
- Scott; H.H.; Maynard, Massachusetts
- Year
- 1970 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 251758
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 10700 kHz
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 110/220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Wooden case
- from Radiomuseum.org

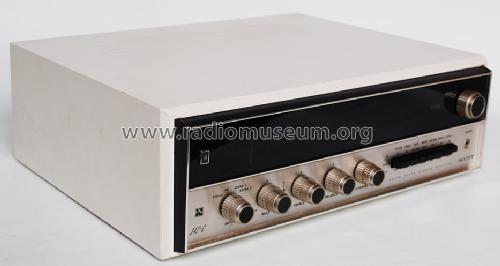

- Model: Stereomaster 342-C - Scott; H.H.; Maynard,
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 400 x 135 x 340 mm / 15.7 x 5.3 x 13.4 inch
- Notes
-
Stereomaster 342-C von Scott ist ein HiFi-Receiver mit Rundfunkempfangsteil (nur UKW)
mit manueller Abstimmung - exakte Mittenabstimmung und analoge Feldstärke-Anzeige.Einige technische Daten:

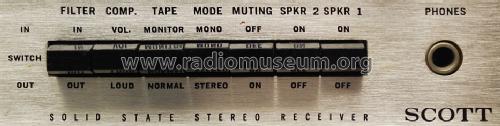

4 Signal-Eeingänge, Phono, Tape, Extern 1, Extern 2 (AUX/Line);
Ausgangsleistung, 2 x 40 Watt;
Anschluss für 4 Lautsprecher (2 Lautsprecher-Paare, A/B Betrieb schaltbar);
Kopfhörer-Buchse, 6,3 mm Klinke.
- Net weight (2.2 lb = 1 kg)
- 8 kg / 17 lb 9.9 oz (17.621 lb)
- Author
- Model page created by Jürgen Küting. See "Data change" for further contributors.
