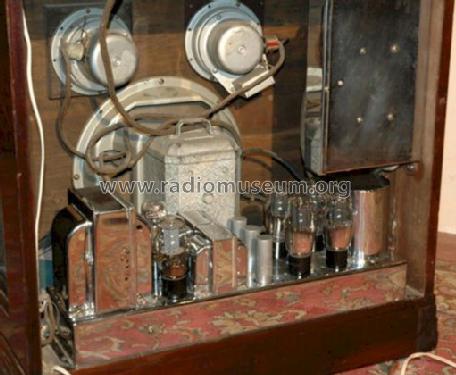

Allwave 23 Chrome CHASSIS 7 knob late

• Country
• United States of America (USA)

• Manufacturer / Brand
• Scott Radio Labs.(E.H., Transformer); Chicago (IL)

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 72015

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 21

• Valves / Tubes
• 6D6 6A7 6B7 76 NE42 NE42 39/44 39/44 39/44 6D6 76 76 76 76 6C6 6C6 6C6 6L6G 6L6G 6L6G 6L6G 5U4 5U4

• Main principle
• Superhet with RF-stage

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org
• Model: Allwave 23 Chrome CHASSIS [7 knob late] - Scott Radio Labs.E.H.,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 545 x 210 x 290 mm / 21.5 x 8.3 x 11.4 inch

• Notes

• Three chassis to fit a console of choice or custom made. Our count is 21 tubes, while Scott includes two NE42 neon bulbs as regulators for a total of 23 tubes as indicated in the model number.

• Price in first year of sale
• 180.00

• Source of data
• E.H.Scott Radio Collectors Guide (1925-1946)

• Mentioned in
• Pre-War Consoles

• Author
• Model page created by Ernst Erb. See "Data change" for further contributors.

• Other Models

• Here you find 198 models, 122 with images and 48 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
