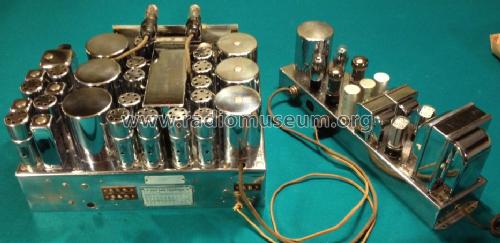

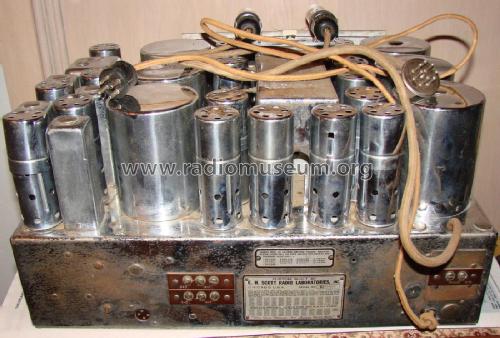

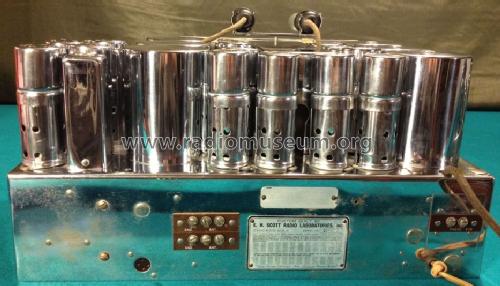

FM Phantom Chrome CHASSIS

• Country
• United States of America (USA)

• Manufacturer / Brand
• Scott Radio Labs.(E.H., Transformer); Chicago (IL)

• Year
• 1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 132649

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 28

• Valves / Tubes

• Main principle
• Superheterodyne (common)

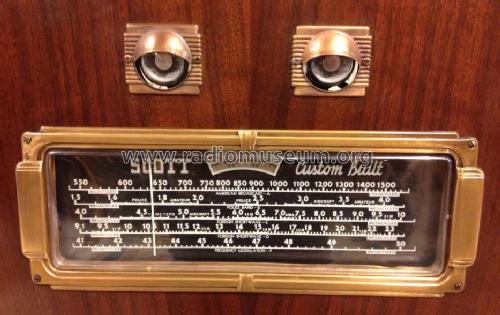

• Wave bands
• Broadcast, more than 2 SW bands plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 15 inch = 38.1 cm

• Material
• Metal case, TUBES VISIBLE

• from Radiomuseum.org
• Model: FM Phantom Chrome CHASSIS - Scott Radio Labs.E.H.,

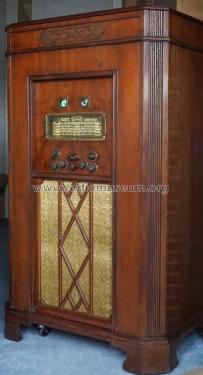

• Shape
• Chassis only or for «building in»

• Notes

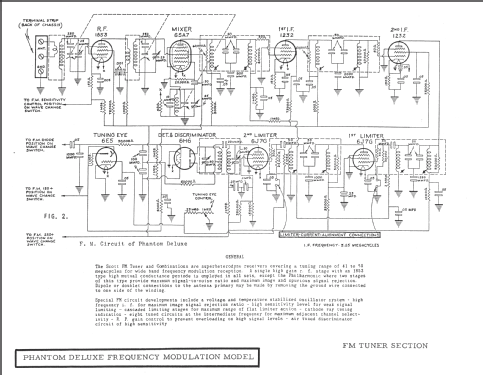

• The FM circuits in this Scott Radio Labs FM Phantom use the following tubes: RF tube 1853 (metal, same as 6AB7), Mixer 6SA7, 1st IF 1232, 2nd IF 1232, tuning eye 6E5, det & discr. 6H6, 1st limiter 6J7G, 2nd limiter 6J7G. There is an FM sensitivity control (RF gain control) and a tuning eye control. IF is 5.25 MHz and tuning range 41 to 50 MHz. Voltage and temperature stabilized oscillator system.

• Source of data
• E.H.Scott Radio Collectors Guide (1925-1946)

• Mentioned in
• Pre-War Consoles

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
