Napier Allwave Superheterodyne
Scott Radio Labs.(E.H., Transformer); Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Scott Radio Labs.(E.H., Transformer); Chicago (IL)
- Year
- 1932
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 303867
Picture from Steven Brown
Picture from Steven Brown
Picture from Steven Brown
Original Scott Antenna tuner included
- Number of Tubes
- 12
- Valves / Tubes
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case, TUBES VISIBLE.
- from Radiomuseum.org
- Model: Napier Allwave Superheterodyne - Scott Radio Labs.E.H.,
- Shape
- Console, Lowboy (legs < 50 %).
- Notes
-

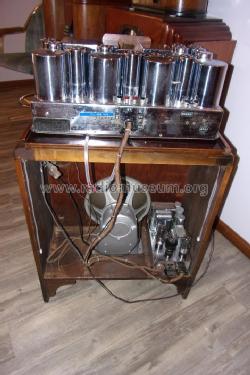

The power supply and speaker are housed in the lower cabinet. The set uses plug-in coils to receive frequencies from 15 - 550 meters (20 MHz - 545 KHz).
See model Napier for the cabinet.
The chassis may be a slightly earlier version of the Allwave Deluxe that eliminated the need for plug-in coils.
- Mentioned in
- Radio Craft (November 1932, pages 288 - 289)
- Author
- Model page created by David Erali. See "Data change" for further contributors.
