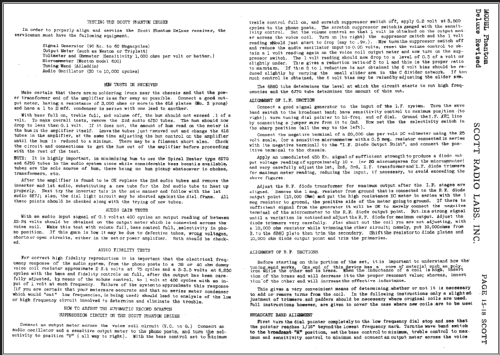

Select picture or schematic to display from thumbnails on the right and click for download.
For model AM Phantom Deluxe Chrome CHASSIS w/o logging scale, Scott Radio Labs.(E.H., Transformer); Chicago (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Scott Radio Labs.(E.H., Transformer); Chicago (IL)
Year: 1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 20:
Main principle Superheterodyne (common)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker
Power out
from Radiomuseum.org Model: AM Phantom Deluxe Chrome CHASSIS [w/o logging scale] - Scott Radio Labs.E.H.,
Material Metal case, TUBES VISIBLE
Shape Chassis only or for «building in»
Notes 5 wavebands including Ultra Short Wave and Television band, which can be found in either red or white on the dial.
Price in first year of sale 250.00 $
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 14 = 1944 = before 1943
Mentioned in E.H.Scott Radio Collectors Guide (1925-1946) (var.3 of 6;)
Literature/Schematics (1) Pre-War Consoles
