FM Philharmonic Chrome CHASSIS

FM Philharmonic Chrome CHASSIS; Scott Radio Labs.E.H (ID = 225758) Radio

FM Philharmonic Chrome CHASSIS; Scott Radio Labs.E.H (ID = 225759) Radio

FM Philharmonic Chrome CHASSIS; Scott Radio Labs.E.H (ID = 225760) Radio
FM Philharmonic Chrome CHASSIS; Scott Radio Labs.E.H (ID = 354359) Radio FM Philharmonic Chrome CHASSIS; Scott Radio Labs.E.H (ID = 602521) Radio
FM Philharmonic Chrome CHASSIS; Scott Radio Labs.E.H (ID = 602520) Radio FM Philharmonic Chrome CHASSIS; Scott Radio Labs.E.H (ID = 712748) Radio
Use red slider bar for more.
FM Philharmonic Chrome CHASSIS; Scott Radio Labs.E.H (ID = 354359) Radio

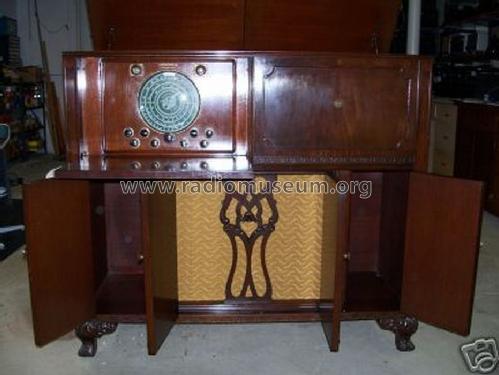

Scott Radio Labs.E.H: FM Philharmonic Chrome CHASSIS [Radio] ID = 354359 520x402
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM Philharmonic Chrome CHASSIS, Scott Radio Labs.(E.H., Transformer); Chicago (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Scott Radio Labs.(E.H., Transformer); Chicago (IL)
Year: 1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 33: 6U7 6U7 6L7 6E5 6E5 6K7 6K7 6K7 6B8 6K7 6F8 6J5 VR150 6B8 6B8 6H6 6H6 6B8 6J7 1853 1853 6SA7 1232 1232 6J7 6J7 6H6 6L6 6L6 6L6 6L6 5U4 5U4
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110/250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 15 inch = 38.1 cm
Power out 50 W (unknown quality)
from Radiomuseum.org Model: FM Philharmonic Chrome CHASSIS - Scott Radio Labs.E.H.,
Material Metal case, TUBES VISIBLE
Shape Chassis only or for «building in»
Dimensions (WHD) 580 x 290 x 460 mm / 22.8 x 11.4 x 18.1 inch
Notes Wave Length Range(13 to 2,000 meters) on five AM wave bands, and from 41 to 50 megacycles on FM wave band.
Price in first year of sale 600.00 $
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 14 = 1944 = before 1943
Mentioned in E.H.Scott Radio Collectors Guide (1925-1946)
Literature/Schematics (1) E.H.Scott Radio Collectors Guide (1925-1946) (Scott news "Silver Ghosts by IWF Puett")
Literature/Schematics (2) Pre-War Consoles
