• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1938 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 57106

• • Brand: Silvertone

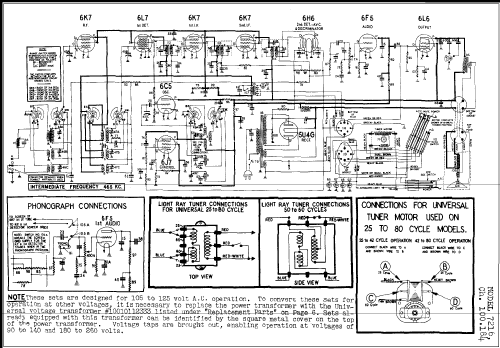

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6K7 6L7 6C5 6K7 6K7 6H6 6J7 6F5 6L6 5U4G

• Main principle
• Superhet with RF-stage; ZF/IF 465 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 105 - 135 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm

• Power out
• 6 W (8 W max.)

• from Radiomuseum.org
• Model: Silvertone 7216 Ch= 100.184 - Sears, Roebuck & Co.; Chicago

• Shape
• Console with Push Buttons.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 20 covering 1950

• Other Models
