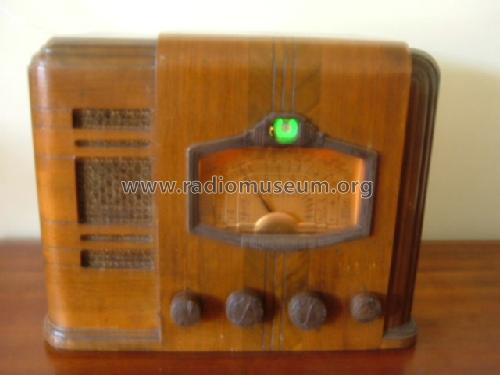

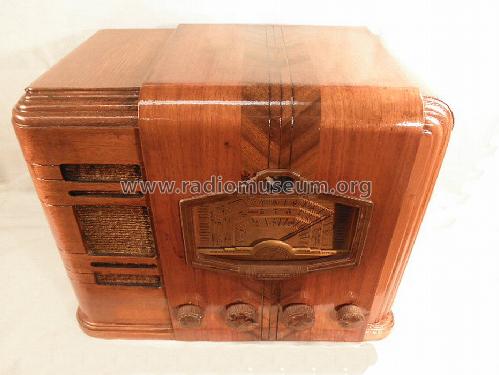

Silvertone 4763 Ch= 101.471

• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56467

• • Brand: Silvertone

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A8G 6K7G 6B6 6V6 6U5 6X5G

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Permanent or electro-dynamic (moving coil), system not known yet. / Ø 6 inch = 15.2 cm

• Power out
• 3.3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 4763 Ch= 101.471 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 16 x 12 x 9 inch / 406 x 305 x 229 mm

• External source of data
• Ernst Erb

• Source of data
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Circuit diagram reference
• Rider's Perpetual, Volume 18 = 1949 and before

• Mentioned in
• Collector's Guide to Antique Radios 4. Edition

• Literature/Schematics (1)
• Table Top Radios Vol. 1 Stein 98

• Other Models

• Here you find 5482 models, 3214 with images and 4188 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
