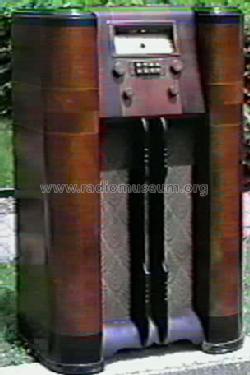

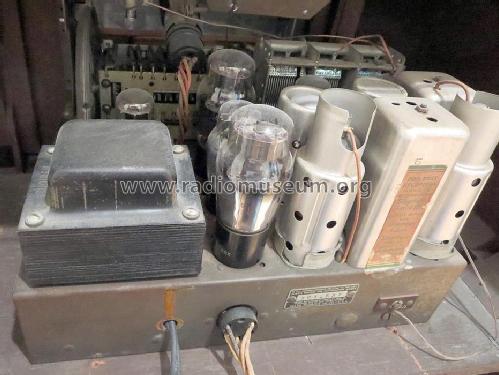

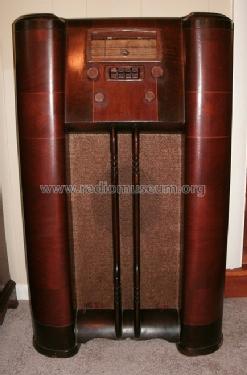

Silvertone 6152 Ch= 101.537

Sears, Roebuck & Co.; Chicago (IL)

  • Year
  • 1938
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 56698
    • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 105-125 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
  • Power out
  • 10 W (unknown quality)
  • from Radiomuseum.org
  • Model: Silvertone 6152 Ch= 101.537 - Sears, Roebuck & Co.; Chicago
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 10 = 1939 and before
  • Literature/Schematics (1)
  • Riders 10-82, 83, 84

 Collections | Museums | Literature

Collections

The model Silvertone 6152 is part of the collections of the following members.
