• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1947 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56647

• • Brand: Silvertone

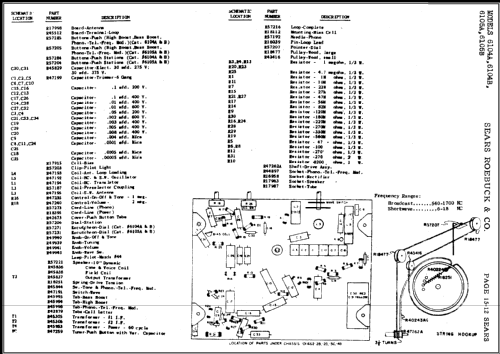

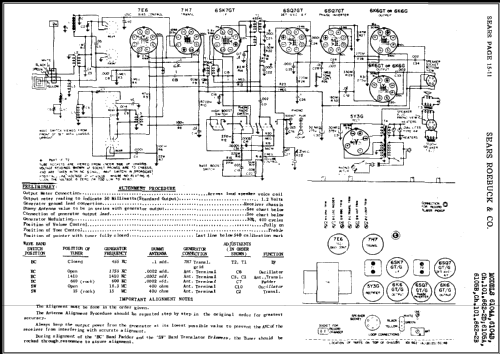

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 7E6 7H7 6SK7GT 6SQ7GT 6SQ7GT 6K6G 6K6G 5Y3G

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 105 - 125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 9.5 inch = 24.1 cm

• Material
• Wooden case

• from Radiomuseum.org

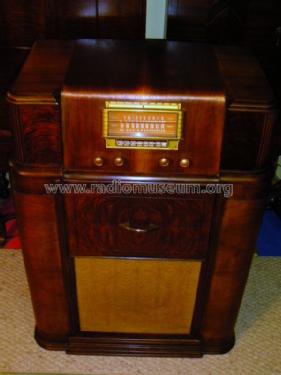

• Model: Silvertone 6104B Ch= 101.662-2D - Sears, Roebuck & Co.; Chicago

• Shape
• Console with any shape - in general

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 15 = 1947 and before

• Other Models

• Here you find 5464 models, 3199 with images and 4169 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sears, Roebuck & Co.; Chicago (IL)
