Silvertone 6200 Ch= 101.800

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1946
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 56735
    • Brand: Silvertone

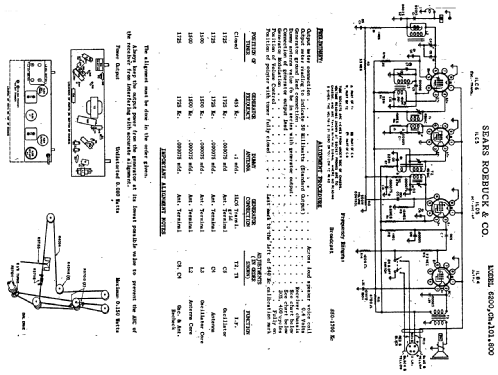

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / Battery combined 1.5 and 90 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Silvertone 6200 Ch= 101.800 - Sears, Roebuck & Co.; Chicago
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Notes
  • The Silvertone 6200 from Sears, Roebuck & Co. with chassis 101.800 is a battery operated superheterodyne receiver. There are also at least two versions of the Silvertone 6200A with a most similar chassis, one with chassis 101.800-3 and the other with chassis 101.800-1. Also the model Silvertone 8200 and 6203 are using the chassis 101.800 - there is model 8200 with chassis 101.800-2B and model 6203 with chassis 101.800-A. Please select carefully if you upload model pictures or data.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 15 = 1947 and before
