Silvertone 110

Silvertone 110 ; Sears, Roebuck & Co. (ID = 1272900) Radio

Silvertone 110 ; Sears, Roebuck & Co. (ID = 1272901) Radio

Silvertone 110 ; Sears, Roebuck & Co. (ID = 1272913) Radio

Silvertone 110 ; Sears, Roebuck & Co. (ID = 1272902) Radio

Silvertone 110 ; Sears, Roebuck & Co. (ID = 1272903) Radio

Silvertone 110 ; Sears, Roebuck & Co. (ID = 1272904) Radio

Silvertone 110 ; Sears, Roebuck & Co. (ID = 1272905) Radio

Silvertone 110 ; Sears, Roebuck & Co. (ID = 1272906) Radio

Silvertone 110 ; Sears, Roebuck & Co. (ID = 1272907) Radio

Silvertone 110 ; Sears, Roebuck & Co. (ID = 1272908) Radio
Use red slider bar for more.
Silvertone 110 ; Sears, Roebuck & Co. (ID = 1272900) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1930 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: 227 227 227 227 227 227 245 245 280
Main principle TRF without regeneration; Neutrodyne
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 110 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Silvertone 110 - Sears, Roebuck & Co.; Chicago
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 25 x 45 x 16 inch / 635 x 1143 x 406 mm
Notes
Price in first year of sale 89.00 $
External source of data Ernst Erb
Source of data The Sears Silvertone Catalogs 1930-1942

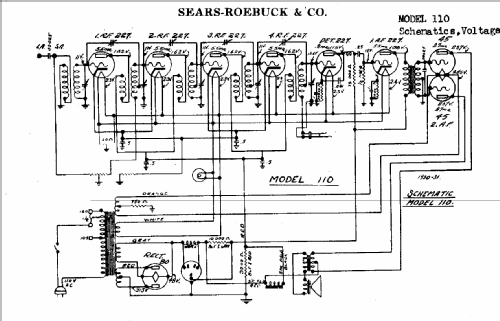

Circuit diagram reference Rider's Perpetual, Volume 6 = 1935 and before
Literature/Schematics (1) Riders 6- 3
