Silvertone 1721 Sky Rover Ch= 110.415-1
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 55922
-
- Brand: Silvertone

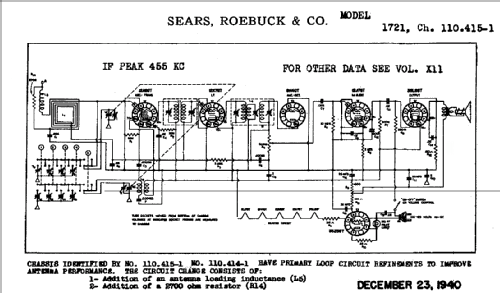

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 110-125 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 1721 Sky Rover Ch= 110.415-1 - Sears, Roebuck & Co.; Chicago
- Dimensions (WHD)
- 25 x 38 x 14 inch / 635 x 965 x 356 mm
- Notes
- Following Riders index, there should be a model 1721 ch= 110.415 on Riders 12-19.This is an error ! On page 12-19 only model 1661 is mentioned.
- Price in first year of sale
- 63.00 $
- External source of data
- Ernst Erb
- Source of data
- Pre-War Consoles
- Circuit diagram reference
- Rider's Perpetual, Volume 14 = 1944 = before 1943
- Mentioned in
- The Sears Silvertone Catalogs 1930-1942
- Literature/Schematics (1)
- Riders 14-3
