• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56219

• • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6A7 6D6 6Q7G 41 80

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 105-120 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 5 inch = 12.7 cm

• Power out
• 3.2 W (unknown quality)

• from Radiomuseum.org

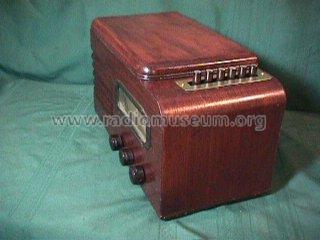

• Model: Silvertone 3972 Ch= 113.972 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel with Push Buttons.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 10 = 1939 and before

• Literature/Schematics (1)
• Riders 10-1, 2

• Other Models

• Here you find 5464 models, 3199 with images and 4170 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sears, Roebuck & Co.; Chicago (IL)
