Silvertone Triple Screen Grid Order= 57EM1140C or 1141C

Sears, Roebuck & Co.; Chicago (IL)

Data
Forum
Pictures
Collections

  • Year
  • 1931
perfect model
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 55773
    • Brand: Silvertone

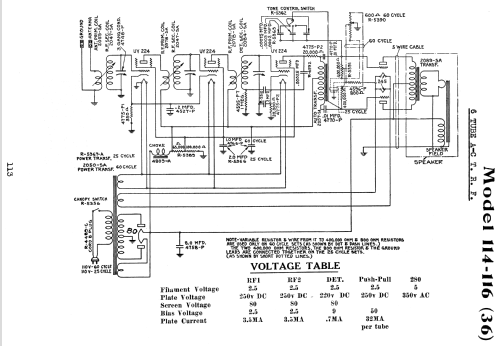

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • TRF without regeneration; Screengrid 1926-1935
  • Tuned circuits
  • 3 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 115 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Silvertone Triple Screen Grid Order= 57EM1140C or 1141C - Sears, Roebuck & Co.; Chicago
  • Shape
  • Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
  • Dimensions (WHD)
  • 14.75 x 16.5 x 7.625 inch / 375 x 419 x 194 mm
  • Notes
  • The Sears Silvertone Triple Screen Grid All-Electric with a "Push-pull output and full size dynamic speaker has genuine walnut cabinet, beautiful "Tarso" process decorated front with a reproduction in natural colors of rich inlaid marquetry." The model could be ordered for 25 cycle mains for the same price (with a bigger transformer).
    Order number 57EM1140C 1/4 without tubes or accessories for $ 35.50 or 57EM1141C 1/4 with all tubes, batteries, batterie tester and aerial (antenna kit 5517) for $ 47 or for easy payment: $ 5 "down" cash and $ 5 per month until paid $ 51.50 as 57EM1141T 1/4 (57EM1140T without tubes). See details and summaries about Sears catalogs etc.
  • Price in first year of sale
  • 35.50 $ +
  • External source of data
  • Ernst Erb
