• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1946

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 55807

• • Brand: Silvertone

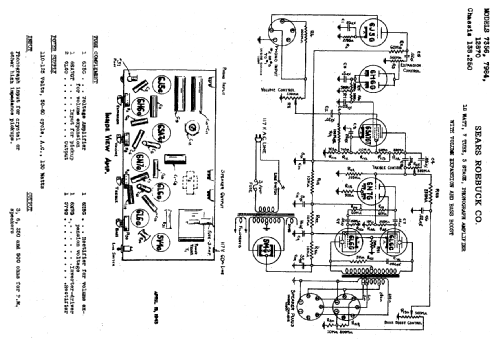

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6J5G 6H6G 6SA7GT 6N7G 6L6G 6L6G 5V4G

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 50 - 60 Hz: 110 - 125 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 18 W (unknown quality)

• from Radiomuseum.org
• Model: Silvertone 12870 - Sears, Roebuck & Co.; Chicago

• Notes

• Phono input for crystal or other high impedance pick-up. Treble and bass boost controls.
  Output impedance: 3, 6, 250 and 500 Ω.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 14 = 1944 = before 1943

• Literature/Schematics (1)
• Riders 14-64

• Literature/Schematics (2)
• Schematic
