CH=132.026 4

CH=132.026 4; Sears, Roebuck & Co. (ID = 2093908) Radio CH=132.026 4; Sears, Roebuck & Co. (ID = 2093904) Radio
CH=132.026 4; Sears, Roebuck & Co. (ID = 2093910) Radio CH=132.026 4; Sears, Roebuck & Co. (ID = 2093911) Radio
Use red slider bar for more.

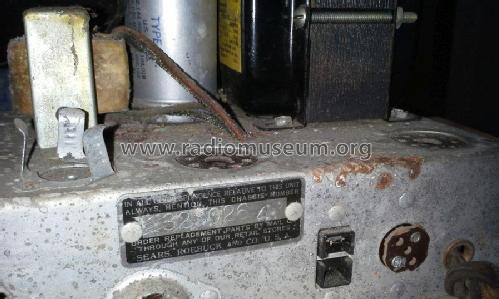

CH=132.026 4; Sears, Roebuck & Co. (ID = 2093908) Radio
Sears, Roebuck & Co.: CH=132.026 4 [Radio] ID = 2093908 899x539
Select picture or schematic to display from thumbnails on the right and click for download.
For model CH=132.026 4, Sears, Roebuck & Co.; Chicago (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1950 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6:
Main principle Superhet with RF-stage
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast only (MW).
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: CH=132.026 4 - Sears, Roebuck & Co.; Chicago
Notes

Apears visually very similar to ch. 132.026-6 SAMS 255-12



Model page created by Steve McInnis. See "Data change" for further contributors.
