Silvertone 3451 Commentator Ch= 132.802-2C (-2D, -2E)

Silvertone 3451 Commentator Ch= 132.802-2C ; Sears, Roebuck & Co. (ID = 653339) Radio

Silvertone 3451 Commentator Ch= 132.802-2C ; Sears, Roebuck & Co. (ID = 653340) Radio
Silvertone 3451 Commentator Ch= 132.802-2C ; Sears, Roebuck & Co. (ID = 1166520) Radio Silvertone 3451 Commentator Ch= 132.802-2C ; Sears, Roebuck & Co. (ID = 1166521) Radio
Silvertone 3451 Commentator Ch= 132.802-2C ; Sears, Roebuck & Co. (ID = 1166522) Radio Silvertone 3451 Commentator Ch= 132.802-2C ; Sears, Roebuck & Co. (ID = 1166523) Radio
Silvertone 3451 Commentator Ch= 132.802-2C ; Sears, Roebuck & Co. (ID = 1289507) Radio Silvertone 3451 Commentator Ch= 132.802-2C ; Sears, Roebuck & Co. (ID = 1289508) Radio
Silvertone 3451 Commentator Ch= 132.802-2C ; Sears, Roebuck & Co. (ID = 1305431) Radio Silvertone 3451 Commentator Ch= 132.802-2C ; Sears, Roebuck & Co. (ID = 1305432) Radio
Use red slider bar for more.
Silvertone 3451 Commentator Ch= 132.802-2C ; Sears, Roebuck & Co. (ID = 1166520) Radio

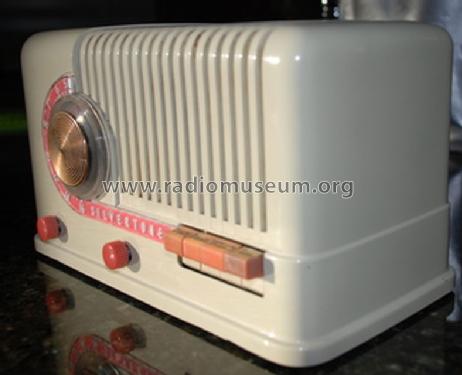

Sears, Roebuck & Co.: Silvertone 3451 Commentator Ch= 132.802-2C [Radio] ID = 1166520 790x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model Silvertone 3451 Commentator Ch= 132.802-2C (-2D, -2E), Sears, Roebuck & Co.; Chicago (IL):
Collection of Greg Mercurio

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12A8GT 12K7GT 12SQ7GT 35L6GT 35Z4GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 35 Watts, AC 25 to 60 cycles or DC, 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 2.6 W (unknown quality)
from Radiomuseum.org Model: Silvertone 3451 Commentator Ch= 132.802-2C - Sears, Roebuck & Co.; Chicago
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 10.53125 x 6 x 5.5 inch / 267 x 152 x 140 mm
Notes

This "Candy Cane" Sears model family "Commentator", made by Noblitt-Sparks (Arvin) consists of Silvertone 3351 in rich burl Walnut color with golden color dial and knobs, Silvertone 3451 in Ivory color with sparkling red dial and knobs, Silvertone 3551 in Onyx color with golden color dial and knobs. The different chassis versions and the details about this model: See this text. These models have a permanent magnetic moving coil speaker (chocke, not field).
 Post war followers with the same cabinet but with single ended tubes are Silvertone 7004, 7006 and 7008.
All show the "push down" or "piano key" "instamatic" buttons, not ordinary "push buttons". The set would be pushed away with ordinary push buttons. All have the same drift problems. Order= 57F 3451

External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 18 = 1949 and before
Literature/Schematics (1) Riders 12-34 ; 18-11
Literature/Schematics (2) The Sears Silvertone Catalogs 1930-1942 (page 195)

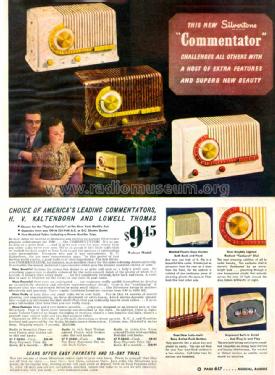

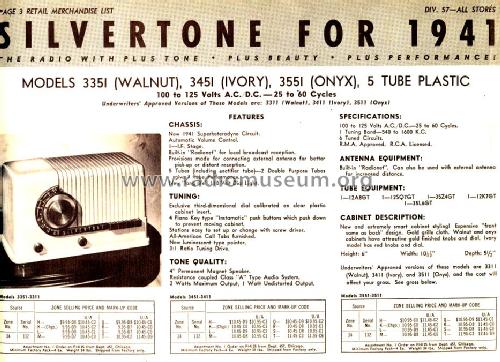

Literature/Schematics (3) Sears, Roebuck Catalogs (Silvertone) (#181, Fall & Winter 1940/41, page 617.)
