For model Silvertone 2 Ch= 132.878 Order=57D 02, Sears, Roebuck & Co.; Chicago (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1949–1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 12SA7GT 12SQ7GT 50L6GT 35Z5GT
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 105 - 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Silvertone 2 Ch= 132.878 Order=57D 02 - Sears, Roebuck & Co.; Chicago
Material Metal case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 7.75 x 5.125 x 4 inch / 197 x 130 x 102 mm
Notes

The Silvertone models 1 (color Brown) and 2 (color Ivory) AC-DC operated superheterodyne receivers with chassis 132.878 are supplied by Sears, Roebuck And Co., 925 S. Homan St., Chicago, Illinois.

Price in first year of sale 9.95 $
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965

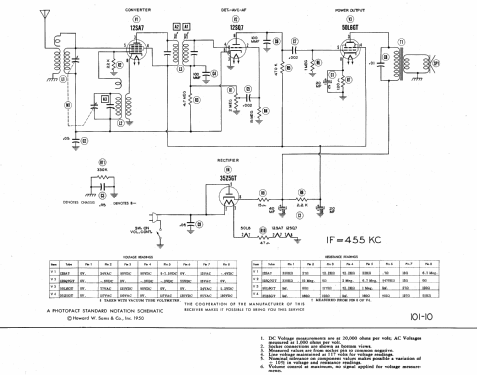

Circuit diagram reference Rider's Perpetual, Volume 21, Copyright 1950
Mentioned in Collector's Guide to Antique Radios 4. Edition (Machine Age to J.Vol.2 Stein 97)

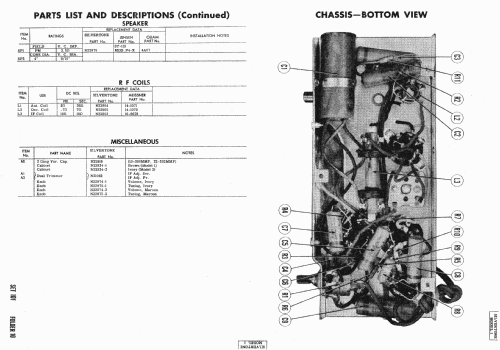

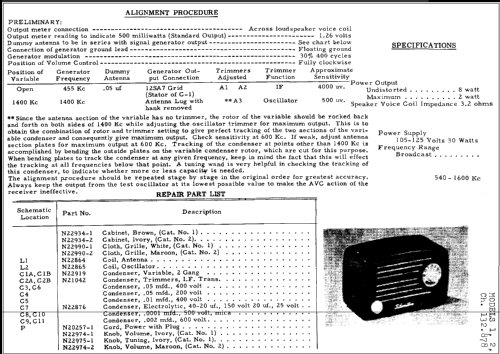

Literature/Schematics (1) Beitman Radio Diagrams, Vol. 10, 1950 (SAMS Photofact Date 7-50, set 101, folder 10)

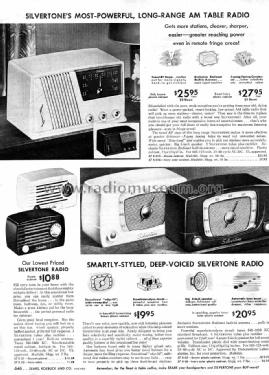

Literature/Schematics (3) Sears, Roebuck Catalogs (Silvertone) (#200, Spring & Summer 1950, page 605. Spring & Summer 1951, page 646.)

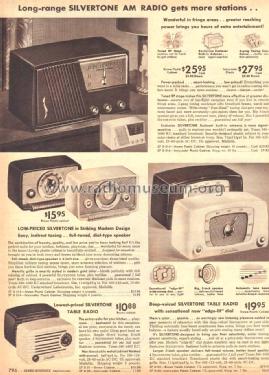

Literature/Schematics (4) Sears, Roebuck Catalogs (Silvertone) (Mid-Season/Fall 1951, page 289.Fall/Winter 1950, page 740. Fall/Winter 1951, page 796.)
