For model Silvertone 1531 Radio Phonograph Order= 57KM 1531, Sears, Roebuck & Co.; Chicago (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1932/1933 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 35 27 24 35 24 47 47 80
Main principle Superhet with RF-stage; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 60 cycles only, 110 - 120 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Silvertone 1531 Radio Phonograph Order= 57KM 1531 - Sears, Roebuck & Co.; Chicago
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 27 x 46.5 x 17 inch / 686 x 1181 x 432 mm
Notes

The Sears Silvertone 1531 is a Low-Boy console radio, Superhet with stretcher base, offering an Electric Phonograph with a Record Changer for max. ten records 10" or 12". Butt walnut and oriental wood veneer panels. Permopoint Phonograph needle and aerial kit included. Parallel output, tubes 2 x 47.
Order number 57KM 1531 1/4 with tubes for $ 98 or for easy payment: $ 11 "down" cash and $ 10 per month until paid $ 107.75. The Silvertone 1531 is the superhet with the new chassis made by Sentinel Radio instead of Colonial, with the knobs in a straight line. See details and summaries about Sears catalogs etc.

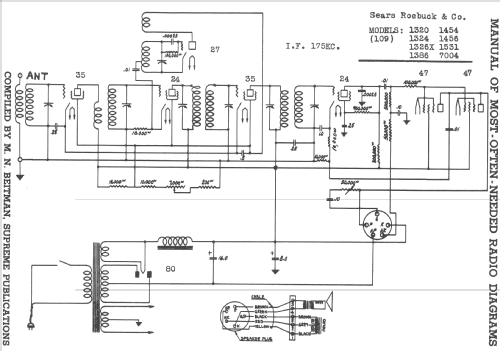

The Sears book "Service information 1928 thru 1936" shows on page 184 the same schematic for the models 1320, 1324, 1326X, 1386, 1454, 1456, 1531 and 7004. See this special text about first Silvertone superhets. Some of these Silvertone radios (1320, 1324, 1326) were available with an earlier chassis with knobs arranged in a "v" (triangle, top down) with 3 tubes 35.

Price in first year of sale 98.00 $ !
External source of data Ernst Erb
Source of data Radio Collector`s Guide 1921-1932
Mentioned in The Radio Collector's Directory and Price Guide 1921 - 1965
Literature/Schematics (1) The Sears Silvertone Catalogs 1930-1942 (page 54)
Literature/Schematics (2) Sears, Roebuck Catalogs (Silvertone) (#165, Fall & Winter 1932/33, page 476.)
Literature/Schematics (3) Silvertone Radios, Service Inf. 1928 thru 1936 (page 184.)
