• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 55935

• • Brand: Silvertone

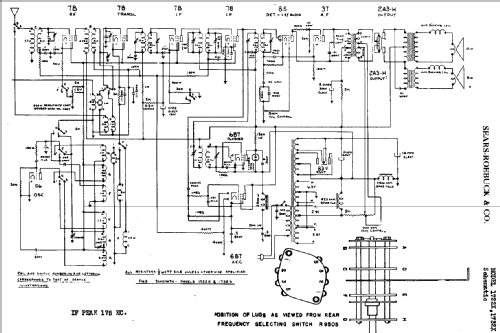

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 12

• Valves / Tubes
• 78 56 78 78 78 6B7 6B7 85 37 2A3H 2A3H 83-V

• Main principle
• Superhet with RF-stage; ZF/IF 175 kHz

• Wave bands
• Broadcast, Short Wave(s) and Police.

• Power type and voltage
• Alternating Current supply (AC) / 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 1732X - Sears, Roebuck & Co.; Chicago

• Shape
• Console with any shape - in general

• Notes
• 2 speakers : 8 and 12 inch.

• External source of data
• Ernst Erb

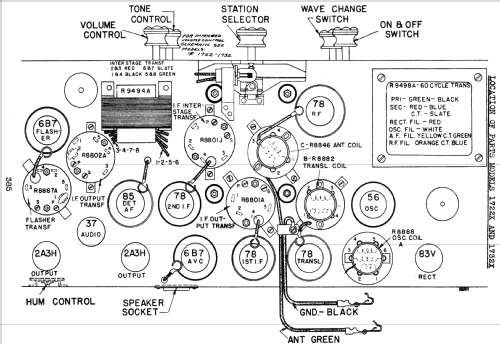

• Circuit diagram reference
• Rider's Perpetual, Volume 4 = ca. 1934 and before

• Literature/Schematics (1)
• Riders 4-29, 30

• Other Models

• Here you find 5491 models, 3222 with images and 4200 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
