Silvertone 1905 Early and Late Order= 57K 1905

Sears, Roebuck & Co.; Chicago (IL)

Data

Forum

Pictures

Collections

Country
United States of America (USA)

Manufacturer / Brand
Sears, Roebuck & Co.; Chicago (IL)

Year
1935/1936

perfect model

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
56008

- Brand: Silvertone

Schematics

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 1296826) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (3)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 1296827) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (3)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 1296828) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (3)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 1296829) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (3)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 1296830) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (3)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 1296832) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (3)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 1296833) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (3)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 1296835) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (3)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 1296836) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (3)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 1296845) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (3)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 1296837) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (3)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 1296838) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (3)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 1296839) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (3)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 1296840) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (3)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 1296841) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (3)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 1296842) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (3)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 1296843) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (3)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 622200) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (3)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 622201) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (3)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 622202) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (3)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 906724) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (2)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 144421) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (2)
eBay seller1940zeffer.

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 144422) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (2)

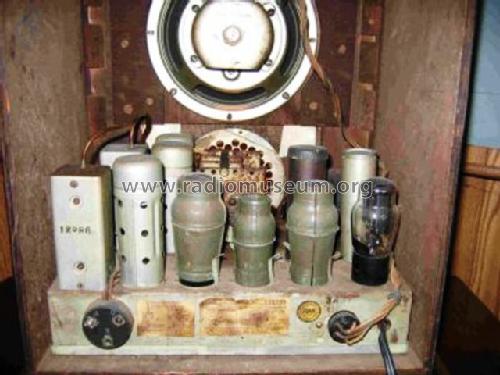

eBay seller 1940zeffer.

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 144423) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (2)
eBay seller 1940zeffer.

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 906725) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (2)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 906726) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (2)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 906727) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (2)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 1271571) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (2)

Silvertone 1905 Early and Late Order= 57K 1905; Sears, Roebuck & Co. (ID = 1271572) Radio — Sears, Roebuck & Co. Silvertone 1905 Early and Late Order= 57K 1905 (2)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Tubes
8

Valves / Tubes
6D6 41 6K7MG 75 6C5MG 6F6MG 6F6MG 80

Main principle
Superheterodyne (common); ZF/IF 175 kHz

Tuned circuits
6 AM circuit(s)

Wave bands
Broadcast, Short Wave(s) and Police.

Power type and voltage
Alternating Current supply (AC) / 105-125 Volt

Loudspeaker
Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

Material
Wooden case

from Radiomuseum.org
Model: Silvertone 1905 Early and Late Order= 57K 1905 - Sears, Roebuck & Co.; Chicago

Shape

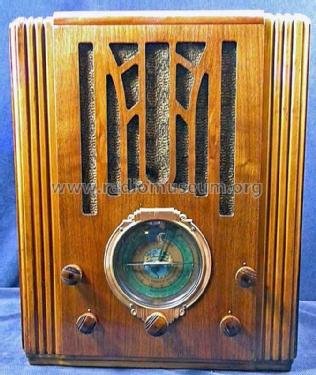

Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

Dimensions (WHD)
14 x 17.8 x 10 inch / 356 x 452 x 254 mm

Notes

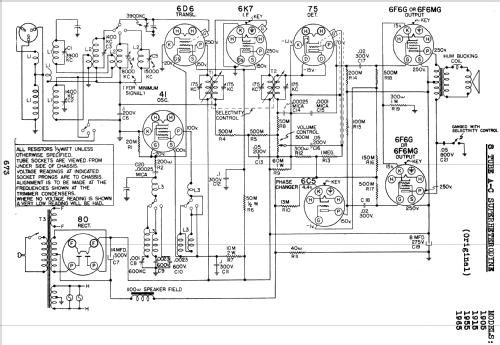

Silvertone 1905 Early and Late: Rider's Sears page 7-13 shows the same schematic and on 7-14 alignment for models 1905, 1915, 1955 and 1965 for "Early and Late". We show also the 17 Sears original technical pages where can be found the schematic for "Original" and "Revised". That may be the difference - and: "Earlier production uses glass and the intermediate or "G" type of tube, later production uses some metal or MG tubes."
Page 7-12 shows details of the "Dual condenser drive shaft" for the models named, plus 1917, 1967, 1967A, 1918, 1968, 1918A, 1968A, 1936, 1996 and drive data for models 1945 and 1946.
See details and summaries about Sears catalogs etc.

Price in first year of sale
38.95 $

External source of data
Ernst Erb

Source of data
The Radio Collector's Directory and Price Guide 1921 - 1965

Circuit diagram reference
Rider's Perpetual, Volume 7 = 1936 and before

Mentioned in
Collector's Guide to Antique Radios 4. Edition (The compl.PriceG.TTR4, Stein 03)

Literature/Schematics (1)
Riders 7-12, 13, 14

Literature/Schematics (2)
The Sears Silvertone Catalogs 1930-1942 (page 91)

Literature/Schematics (3)
Sears, Roebuck Catalogs (Silvertone) (# 171, Fall & Winter 1935/36, page 537.)

Literature/Schematics (4)
Cathedral & Tombstone Radios (page 241.)
