Silvertone 1926 Early , Late

Sears, Roebuck & Co.; Chicago (IL)

  • Year
  • 1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 56034
    • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 480 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage and/or dry batteries / 135 & 22.5 & 3 Volt

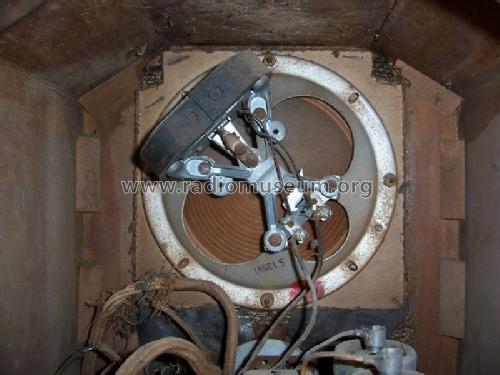

  • Loudspeaker
  • -Loudspeaker incorporated, but system not known.
  • from Radiomuseum.org
  • Model: Silvertone 1926 Early , Late - Sears, Roebuck & Co.; Chicago
  • Notes
  • Early and late means only different battery cable length and a modified resistor.
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 7 = 1936 and before
  • Literature/Schematics (1)
  • Riders 7-30
