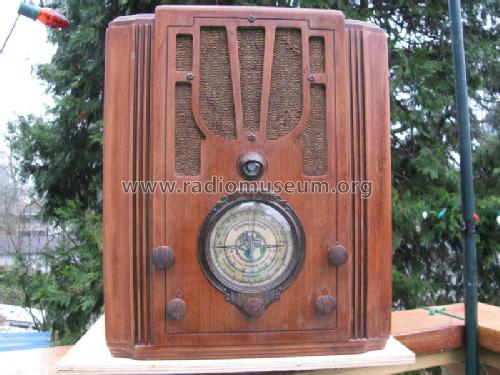

Silvertone 7-Tube Table Model Order= 57L 1942 Ch= 391Y Late

Sears, Roebuck & Co.; Chicago (IL)

  • Year
  • 1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 56053
    • Brand: Silvertone

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 175 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Short Wave(s) and Police.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-120 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Silvertone 7-Tube Table Model Order= 57L 1942 Ch= 391Y [Late] - Sears, Roebuck & Co.; Chicago
  • Shape
  • Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
  • Dimensions (WHD)
  • 15 x 18 x 11 inch / 381 x 457 x 279 mm
  • Price in first year of sale
  • 35.75 $
  • External source of data
  • Ernst Erb
  • Circuit diagram reference
  • Rider's Perpetual, Volume 8 = 1937 and before
  • Literature/Schematics (1)
  • Riders 8-4; 9-14
