• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1941

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 248892

• • Brand: Silvertone

• Number of Tubes
• 3

• Valves / Tubes
• 6SF5 6V6 5Y3

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Guitar Amplifier

• Power type and voltage
• Alternating Current supply (AC) / 60 cycles, 110 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6.5 inch = 16.5 cm

• Power out
• 3.5 W (5.5 W max.)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

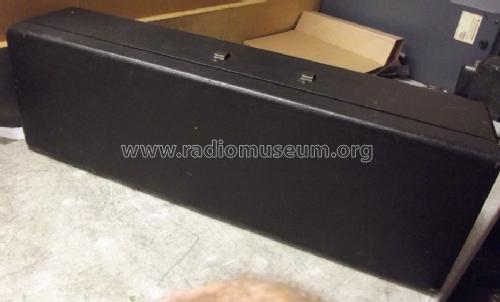

• Model: 2323 Hawaiian Guitar & Amplifier Outfit Ch= 163.200 Order= 12K 02323 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, with any shape - general.

• Notes

• Low-cost Lap Steel Guitar with amplifier in case.

• Price in first year of sale
• 29.95 $

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
