• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56231

• • Brand: Silvertone

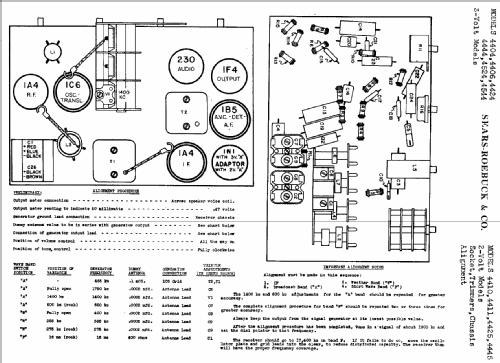

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 1A4 1C6 1A4 1B5 230 1F4 1N1

• Main principle
• Superhet with RF-stage; ZF/IF 465 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Dry Batteries / 135 & 3 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm

• Power out
• 0.66 W (unknown quality)

• from Radiomuseum.org
• Model: Silvertone 4406 - Sears, Roebuck & Co.; Chicago

• Notes
• This model used the 3 volt A battery (No. 5502P) and the 1N1 automatic battery economizer, for details see schematic. Speaker 6.5 or 8 inch.

• External source of data
• Ernst Erb

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before

• Literature/Schematics (1)
• Riders 7-55, 56

• Other Models

• Here you find 5464 models, 3199 with images and 4169 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sears, Roebuck & Co.; Chicago (IL)
