• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1936

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 56356

• • Brand: Silvertone

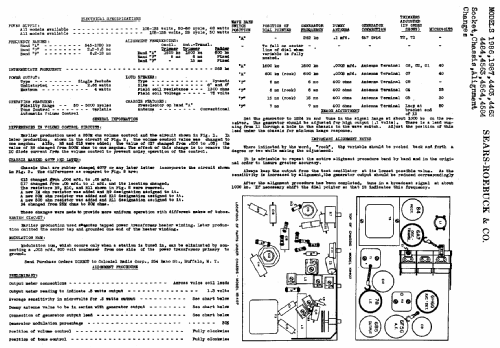

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6A7 78 6H6G 6F5G 6B5 84

• Main principle
• Superheterodyne (common); ZF/IF 262 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Silvertone 4564 - Sears, Roebuck & Co.; Chicago

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 12.7 x 17 x 7.6 inch / 323 x 432 x 193 mm

• Notes
• Speaker 6 or 8 inch.

• External source of data
• Ernst Erb

• Source of data
• Machine Age to Jet Age II

• Circuit diagram reference
• Rider's Perpetual, Volume 7 = 1936 and before

• Mentioned in
• Cathedral & Tombstone Radios (page 246.)

• Literature/Schematics (1)
• Riders 7-45, 46

• Other Models

• Here you find 5478 models, 3210 with images and 4185 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sears, Roebuck & Co.; Chicago (IL)
