Silvertone 4664 Ch= 101.480 Order= 57F 4664

Silvertone 4664 Ch= 101.480 Order= 57F 4664; Sears, Roebuck & Co. (ID = 644285) Radio

Silvertone 4664 Ch= 101.480 Order= 57F 4664; Sears, Roebuck & Co. (ID = 644287) Radio
Silvertone 4664 Ch= 101.480 Order= 57F 4664; Sears, Roebuck & Co. (ID = 1104227) Radio Silvertone 4664 Ch= 101.480 Order= 57F 4664; Sears, Roebuck & Co. (ID = 1104228) Radio
Silvertone 4664 Ch= 101.480 Order= 57F 4664; Sears, Roebuck & Co. (ID = 538887) Radio Silvertone 4664 Ch= 101.480 Order= 57F 4664; Sears, Roebuck & Co. (ID = 538888) Radio
Silvertone 4664 Ch= 101.480 Order= 57F 4664; Sears, Roebuck & Co. (ID = 1275912) Radio Silvertone 4664 Ch= 101.480 Order= 57F 4664; Sears, Roebuck & Co. (ID = 1275914) Radio
Silvertone 4664 Ch= 101.480 Order= 57F 4664; Sears, Roebuck & Co. (ID = 1384806) Radio Silvertone 4664 Ch= 101.480 Order= 57F 4664; Sears, Roebuck & Co. (ID = 1692365) Radio
Silvertone 4664 Ch= 101.480 Order= 57F 4664; Sears, Roebuck & Co. (ID = 1692366) Radio Silvertone 4664 Ch= 101.480 Order= 57F 4664; Sears, Roebuck & Co. (ID = 1693416) Radio
Use red slider bar for more.
Silvertone 4664 Ch= 101.480 Order= 57F 4664; Sears, Roebuck & Co. (ID = 1104227) Radio
Sears, Roebuck & Co.: Silvertone 4664 Ch= 101.480 Order= 57F 4664 [Radio] ID = 1104227 933x570
Select picture or schematic to display from thumbnails on the right and click for download.
For model Silvertone 4664 Ch= 101.480 Order= 57F 4664, Sears, Roebuck & Co.; Chicago (IL):

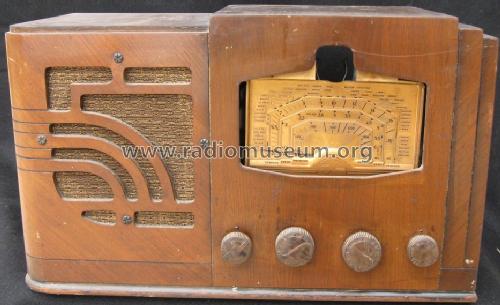

Silvertone 4664 front view

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 6K7G 6A8G 6K7G 6B6G 6U5 6V6G 6X5G
Main principle Superhet with RF-stage; ZF/IF 465 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / Either transformer: 50-60 cycles, 105-125V or 25 cycles, 105-125 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
Power out 2 W (3.3 W max.)
from Radiomuseum.org Model: Silvertone 4664 Ch= 101.480 Order= 57F 4664 - Sears, Roebuck & Co.; Chicago
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 18.5 x 10.9 x 9 inch / 470 x 277 x 229 mm
Notes

The Sears Silvertone 4664 is an AC operated 7 tube BC, Police and SW band receiver. Has tuning eye.

Band Frequency Ranges are as follows:
BC Band (Band A).............540-1800kHz
Police Band (Band P)........1.76-6.3MHz
SW Band (Band F)............5.95-18.5MHz

Sears provided instructions for adding a phonograph input and/or an earphone jack.  Thus some existing models may have these modifications.

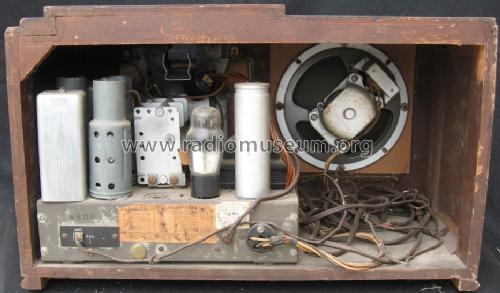

The chassis has 4 labels:

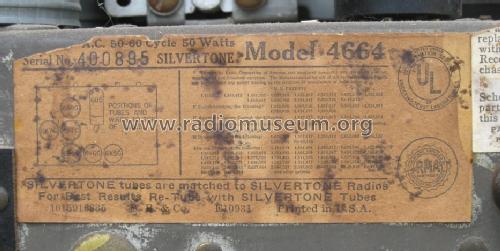

Label on rear of chassis that has model number - Size is 3.75" x 1.5"
Label on rear of chassis that has chassis number - Size is 1.25" x 1.0"
Label on side of chassis with patent information - Size is 6.5" x 2.0"
Label on inside of chassis that has schematic - Size is 4.0" x 2.0"

See details and summaries about Sears catalogs etc. This model was manufactured for Sears by Colonial Radio Corp., Buffalo, NY (Sears Manufacturer Source Number Code 101).

Price in first year of sale 27.95 $
External source of data Ernst Erb
Source of data The Radio Collector's Directory and Price Guide 1921 - 1965
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before
Mentioned in Collector's Guide to Antique Radios 4. Edition
Literature/Schematics (1) Riders 9-51, 52
Literature/Schematics (2) The Sears Silvertone Catalogs 1930-1942 (page 123)
Literature/Schematics (3) Sears, Roebuck Catalogs (Silvertone) (# 175, Fall & Winter 1937/38, page 656.)
Literature/Schematics (4) Machine Age to Jet Age II (page 266.)
