Silvertone 4728 Ch= 101.472
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1937
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56457
-
- Brand: Silvertone

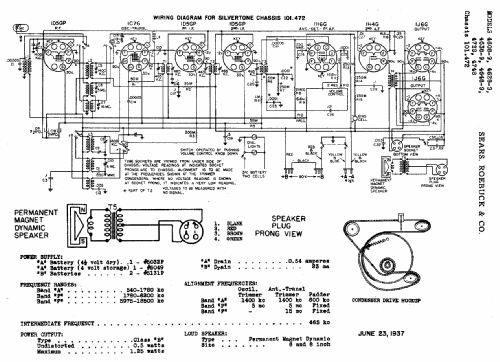

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Storage and/or dry batteries / 90 & 4 or 4.5 & 3 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Power out
- 1.35 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Silvertone 4728 Ch= 101.472 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, low profile (big size).
- Notes
- Speaker 6 or 8 inch. Presence of a Bias cell.
- External source of data
- Ernst Erb
- Source of data
- The Sears Silvertone Catalogs 1930-1942
- Circuit diagram reference
- Rider's Perpetual, Volume 14 = 1944 = before 1943
- Mentioned in
- Machine Age to Jet Age III
- Literature/Schematics (1)
- Riders 14-4, 5
