Silvertone 4788 Ch= 100.159

Silvertone 4788 Ch= 100.159; Sears, Roebuck & Co. (ID = 645058) Radio

Silvertone 4788 Ch= 100.159; Sears, Roebuck & Co. (ID = 645059) Radio

Silvertone 4788 Ch= 100.159; Sears, Roebuck & Co. (ID = 645060) Radio

Silvertone 4788 Ch= 100.159; Sears, Roebuck & Co. (ID = 645061) Radio

Silvertone 4788 Ch= 100.159; Sears, Roebuck & Co. (ID = 645062) Radio

Silvertone 4788 Ch= 100.159; Sears, Roebuck & Co. (ID = 645063) Radio

Silvertone 4788 Ch= 100.159; Sears, Roebuck & Co. (ID = 645066) Radio

Silvertone 4788 Ch= 100.159; Sears, Roebuck & Co. (ID = 645068) Radio

Silvertone 4788 Ch= 100.159; Sears, Roebuck & Co. (ID = 645069) Radio

Silvertone 4788 Ch= 100.159; Sears, Roebuck & Co. (ID = 645070) Radio
Use red slider bar for more.
Silvertone 4788 Ch= 100.159; Sears, Roebuck & Co. (ID = 645058) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 14: 6K7G 6L7G 6K7G 6K7G 6U5 6C5G 6J7G 6H6G 6H6G 6C5G 6C5G 6V6G 6V6G 5U4G
Main principle Superhet with RF-stage; ZF/IF 465 kHz
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 105-135 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 12 inch = 30.5 cm
Power out 14 W (unknown quality)
from Radiomuseum.org Model: Silvertone 4788 Ch= 100.159 - Sears, Roebuck & Co.; Chicago
Material Wooden case
Shape Console with any shape - in general
Notes Speaker 10 or 12 inch.
External source of data Ernst Erb
Source of data Collector's Guide to Antique Radios (6th edition)
Circuit diagram reference Rider's Perpetual, Volume 9 = 1938 and before

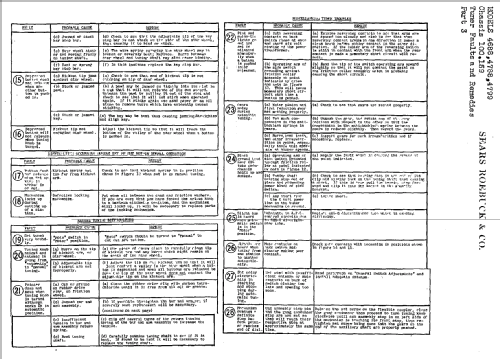

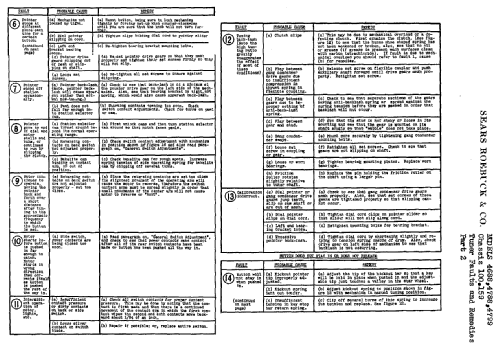

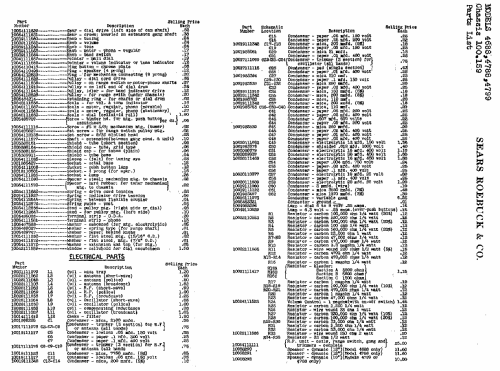

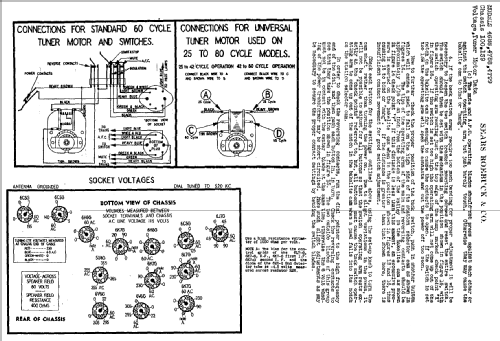

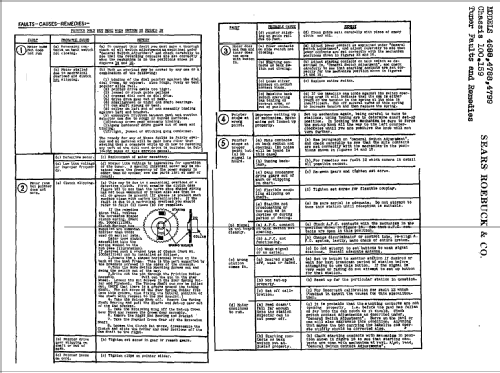

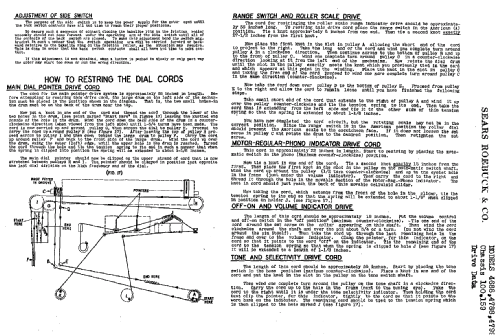

Literature/Schematics (1) Riders 9-61 to 74


All listed radios etc. from Sears, Roebuck & Co.; Chicago (IL)
Here you find 4715 models, 2981 with images and 3288 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
