• Country
• United States of America (USA)

• Manufacturer / Brand
• Sears, Roebuck & Co.; Chicago (IL)

• Year
• 1964–1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 162873

• • Brand: Silvertone

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Dry Batteries / 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.5 cm = 2.2 inch

• Power out
• 0.4 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org

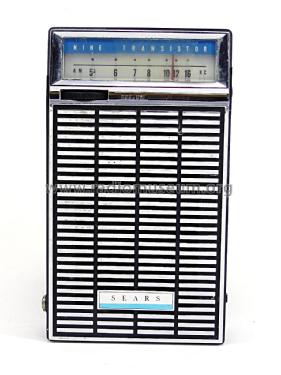

• Model: Silvertone 5212 Order=57K 52121 - Sears, Roebuck & Co.; Chicago

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 86 x 155 x 32 mm / 3.4 x 6.1 x 1.3 inch

• Notes

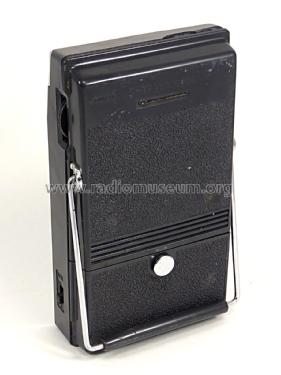

• Model 5212 back color: black, fold-out stand. (Model 5213 back color: beige).

• Net weight (2.2 lb = 1 kg)
• 0.6 kg / 1 lb 5.1 oz (1.322 lb)

• Price in first year of sale
• 21.50 $

• Literature/Schematics (1)
• Transistor Radios (Model info on page 94)

• Literature/Schematics (3)
• Sears, Roebuck Catalogs (Silvertone) (Summer 1964, page 1408.)

• Literature/Schematics (4)
• Sears, Roebuck Catalogs (Silvertone) (Spring/Summer 1965, page 1308.)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
