Silvertone Order= 57K 5750 Ch= 107.A450-S4
Sears, Roebuck & Co.; Chicago (IL)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Sears, Roebuck & Co.; Chicago (IL)
- Year
- 1938–1940
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 56541
-
- Brand: Silvertone
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 12
- Main principle
- Superhet with RF-stage; ZF/IF 465 kHz
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 105-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm
- Power out
- 15 W (unknown quality)
- from Radiomuseum.org

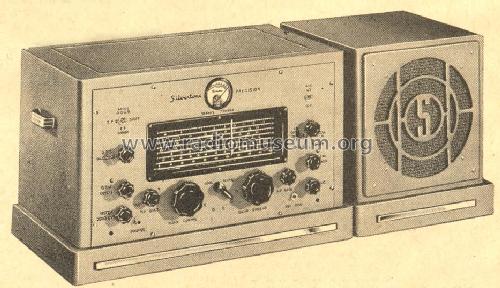

- Model: Silvertone Order= 57K 5750 Ch= 107.A450-S4 - Sears, Roebuck & Co.; Chicago
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 22 x 12 x 12 inch / 559 x 305 x 305 mm
- Notes
-
6 Bands from 65 mc to 530 kc.
- Price in first year of sale
- 94.50 $
- External source of data
- Ernst Erb
- Circuit diagram reference
- Rider's Perpetual, Volume 11 = ca. 1940 and before
- Literature/Schematics (1)
- Riders 11-3, 4, 5, 6
- Literature/Schematics (3)
- Sears, Roebuck Catalogs (Silvertone) (#177, Fall & Winter 1938/39, page 716. #179, Fall & Winter 1939/40, page 942.)
