57H5185N

57H5185N ; Sears, Roebuck & Co. (ID = 668903) Television 57H5185N ; Sears, Roebuck & Co. (ID = 668906) Television
Use red slider bar for more.
57H5185N ; Sears, Roebuck & Co. (ID = 668903) Television
Sears, Roebuck & Co.: 57H5185N [Television] ID = 668903 230x226
Select picture or schematic to display from thumbnails on the right and click for download.
For model 57H5185N, Sears, Roebuck & Co.; Chicago (IL):

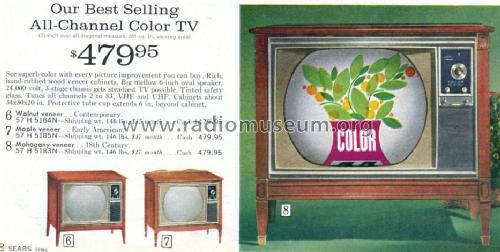

Catalog ~Sears Fall/Winter 1964

Country:  United States of America (USA)
Manufacturer / Brand:  Sears, Roebuck & Co.; Chicago (IL)
Brand

Silvertone
Year: 1964 Category: Television Receiver (TV) or Monitor
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 6 inch = 15.2 cm
Power out
from Radiomuseum.org Model: 57H5185N - Sears, Roebuck & Co.; Chicago
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 34 x 30 x 20 inch / 864 x 762 x 508 mm
Notes Sears Roebuck 57H5185N;
21" (261-sq.in.) NTSC colour TV with US FCC standard VHF & UHF tuner, three-stage 24.000 volt chassis, Early American styled Maple veneer cabinet.
Includes 90-day Home Service Guarantee, 1-year Parts Guarantee & expert installation, extentable to 15 months with type 73H5740 "in home color TV service contract" for US$ 39.95
Price in first year of sale 480.00 $
Source of data -- Original prospect or advert

Model page created by a member from A. See "Data change" for further contributors.
